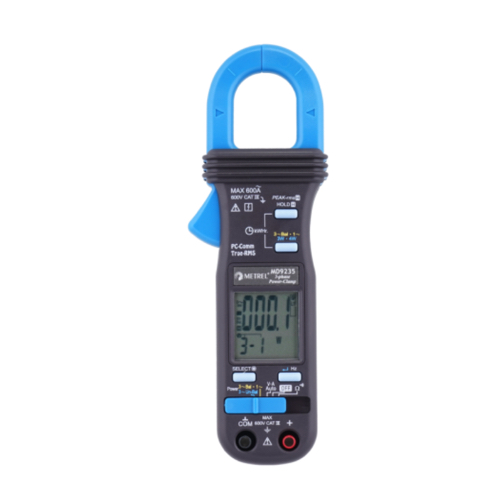

Metrel MD 9235 Standard set Clamp Meters (TRMS 600.0 V; 40.00 A … 600 A)

DC Voltage: 600.0 V / ±(0.5% of reading + 5 digits)

AC Voltage (50 Hz … 3.1 kHz): 600.0 V / From ±(0.5% of reading + 5 digits) to ±(2.5% of reading + 5 digits)

AC Current (40 Hz … 3.1 kHz): 40.00 A … 600 A / From ±(1.0% of reading + 5 digits) to ±(3.0% of reading + 5 digits)

Resistance: 999.9 Ω / ±(1.0% of reading + 6 digits)

Apparent Power: 0 kVA … 600.0 kVA

±(2.0% of reading + 6 digits), H 1./10.

±(3.5% of reading + 6 digits), H 11./46.

±(5.5% of reading + 6 digits), H 46./51.

Active Power, Reactive Power: 0 kW/kVar … 600.0 kW/kVar

From ±(2.0% of reading + 6 digits) to ±(10.0% of reading + 6 digits), H 1./10.

From ±(3.5% of reading + 6 digits) to ±(10.0% of reading + 6 digits), H 11./25.

From ±(4.5% of reading + 6 digits) to ±(15.0% of reading + 6 digits), H 26./45.

From ±(10.0% of reading + 6 digits) to ±(15.0% of reading + 6 digits), H 46./51.

Power Factor (PF):

0.10 … 0.99 / ±3 digits, H 1./21.

0.10 … 0.99 / ±5 digits, H 22./51.

Mains Frequency: 5 Hz … 500 Hz / ±(0.5% of reading + 4 digits)

Power Supply: 2 × 1.5 V AAA batteries

Overvoltage Category: CAT IV / 300 V, CAT III / 600 V

Dimensions: 189 × 78 × 40 mm

Weight: 192 g

• MD 9250 TRMS 3-phase power recording clamp meter

• AMD 9026 Test lead with probe (red, black), 2 pcs

• 1.5 V battery type AAA, 2pcs

• Soft carrying bag

• Instruction manual

• Calibration certificate
