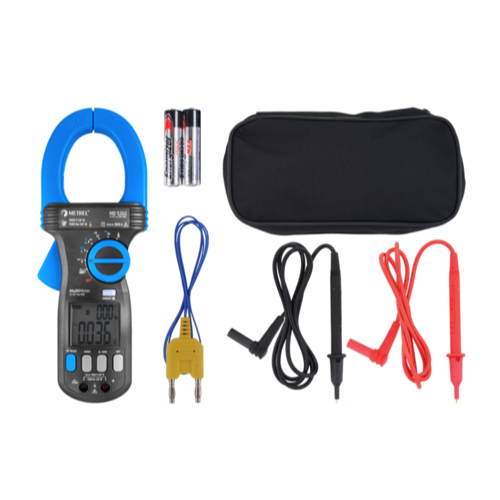

Metrel MD 9250 Clamp Meters (TRMS 6.000 V … 1000 V)

DC Voltage: 6.000 V … 1000 V / ±(0.5% of reading + 5 digits)

AutoCheck (DCV): 6.000 V … 1000 V / ±(1.3% of reading + 5 digits)

AC Voltage (50 Hz … 400 Hz): 6.000 V … 1000 V / ±(1.2% of reading + 5 digits)

AC+DC Voltage (DC, 50 Hz … 400 Hz): 6.000 V … 1000 V / ±(1.4% of reading + 7 digits)

AutoCheck (ACV): 6.000 V … 1000 V / ±(1.5% of reading + 5 digits)

Variable Frequency Drive: 10 Hz … 400 Hz / From ±(4.0% of reading + 80 digits) to ±(7.0% of reading + 80 digits)

DC Current: 200.0 A … 2000 A / From ±(2.0% of reading + 5 digits) to ±(2.5% of reading + 5 digits)

AC Current (50 Hz … 400 Hz): 200.0 A … 2000 A / From ±(2.0% of reading + 5 digits) to ±(3.5% of reading + 5 digits)

Diode Test:

1.000 V / ±(1.0% of reading + 3 digits)

Open-circuit voltage < 1.8 V DC, Test current 0.56 mA

Resistance & AutoCheck: 600.0 Ω … 40.00 MΩ / From ±(0.5% of reading + 5 digits) to ±(2.3% of reading + 5 digits)

Capacitance: 60.00 nF … 2000 µF / From ±(2.0% of reading + 5 digits) to ±(4.0% of reading + 5 digits)

Temperature:

-50 °C … 1000 °C / ±(0.3% of reading + 4 digits)

-58 °F … 1832 °F / ±(0.3% of reading + 6 digits)

Mains Frequency: 10 Hz … 1999 Hz / ±(0.1% of reading + 4 digits)

Power Supply: 2 × 1.5 V AAA batteries

Overvoltage Category: CAT IV / 1000 V

Dimensions: 264 × 97 × 43 mm

Weight: 608 g
