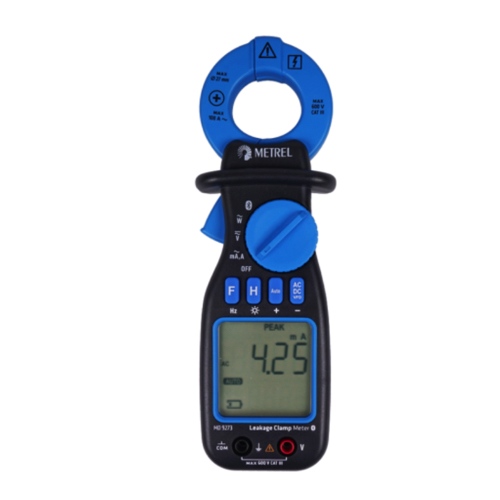

Metrel MD 9273 Standard set Clamp Meters (TRMS 40 mA … 100 A; 40 V … 600 V)

AC Current: 40 mA … 100 A / 0.01 mA / ±(0.8% of reading + 3 digits)

AC/DC Voltage: 40 V … 600 V / 0.01 V / ±(0.5% of reading + 4 digits)

THD: 0 … 999% / 0.1% / ±(2.0% of reading + 3 digits)

Frequency: 45 … 100 Hz / 0.1 Hz / ±(0.1% + 2 digits)

Current Harmonics: 0 … 100% Irange / ±(0.15% × Irange + 3 digits)

Voltage Harmonics: 0 … 100% Urange / ±(0.1% × Urange + 2 digits)

Crest Factor (Voltage/Current): 1.00 … 9.99 / 0.01 / ±(2.0% of reading + 2 digits)

Peak Value Voltage: 40 V … 600 V / 0.01 V / ±(5.0% of reading + 5 digits)

Peak Value Current: 40 mA … 100 A / 0.01 mA / ±(5.0% of reading + 5 digits)

VFD Voltage: 40 V … 600 V / 0.01 V / ±(2.0% of reading + 2 digits)

Power: 0.000 W … 60 kW / 0.001 W / ±(1.0% of reading + 50 digits)

Power Factor (PF): 0.00 … 1.00 / 0.01 / ±5 digits

Phase: -180.0 … 180.0 / 0.1 / ±30 digits

Power Supply: 2 × 1.5 V AAA alkaline batteries

Overvoltage Category: CAT IV / 300 V, CAT III / 600 V

Dimensions: 185 × 62 × 42 mm

Weight: 210 g

• MD 9273 Bluetooth® TRMS Leakage Clamp with Power Functions

• Test lead with probe, 2 pcs

• AMD 9028 Alligator clip, 2 pcs

• 1.5 V battery, type AA, 2 pcs

• Pouch

• Instruction manual

• Calibration certificate

Datasheet
