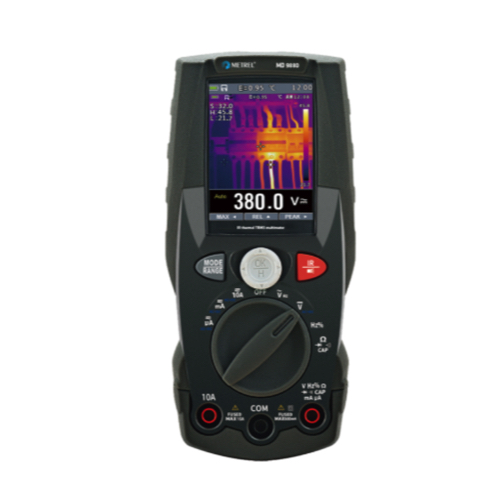

Metrel MD 9880 Thermal Cameras (TRMS 600.0 V; 10.00 A; 80 × 80 pixels; -20 °C … 260 °C)

IR Sensor Resolution: 80 × 80 pixels

Temperature Range: -20 °C … 260 °C

Thermal Sensitivity (NETD): 0.1 °C @ 30 °C / 100 mK

Thermal Accuracy: ±3 °C or ±3% (whichever is greater)

Field of Vision: 21° × 21°

Spectral Range: 8 … 14 µm

Frame Rate: 50 Hz

Focal Length: 7.5 mm

Spatial Resolution: 4.53 mrad

Emissivity: 0.01 … 0.99

Minimum Focus Distance: 0.5 m

Focus: Fixed

Colour Palettes: 4

IP Protection: IP40

DC Voltage: 400.0 mV … 600.0 V / From ±(0.5% + 5d) to ±(0.8% + 8d)

AC TRMS Voltage: 4.000 V … 600.0 V / From ±(1.0% + 5d) to ±(2.5% + 5d)

AC + DC TRMS Voltage: 4.000 V … 600.0 V / ±(2.5% + 5d)

DC Current: 400.0 µA … 10.00 A / From ±(1.5% + 5d) to ±(2.0% + 8d)

AC TRMS Current: 400.0 µA … 10.00 A / From ±(2.0% + 5d) to ±(2.5% + 8d)

Resistance/Continuity: 400.0 Ω … 40.00 MΩ / From ±(1.0% + 5d) to ±(2.5% + 10d)

Frequency: 40.00 Hz … 10.00 MHz / From ±(0.2% + 5d) to ±(0.5% + 0d)

Capacitance: 40.00 nF … 4000 µF / From ±(3.0% + 8d) to ±(3.5% + 20d)

Duty Cycle: 10.0% … 90.0% / ±(1.2% + 2d)

Diode Test: Test current < 1.5 mA, max open-circuit voltage 3.3 V
