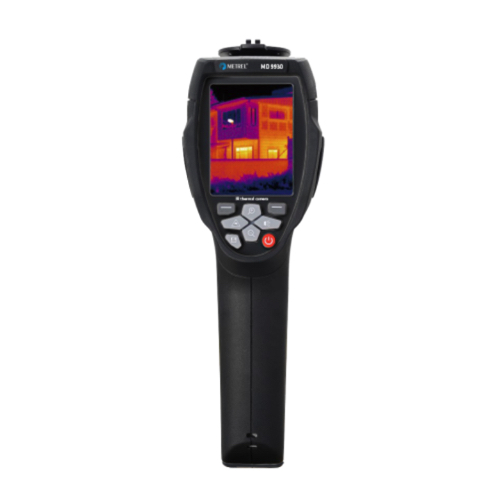

Metrel MD 9930 Standard set Thermal Cameras (160 × 120 pxl; -20 °C … 350 °C)

IR Sensor Resolution: 160 × 120 pxl

Temperature Range: -20 °C … 350 °C

Thermal Sensitivity (NETD): 0.1 °C @ 30 °C / 100 mK

Thermal Accuracy: ±2 °C or ±2%

Field of Vision: 25° × 19°

Spectral Range: 8 … 14 µm

Emissivity: 0.01 … 1.0

Frame Rate: 50 Hz

Focal Length: 9 mm

Spatial Resolution: 2.78 mrad

Minimum Focus Distance: 0.5 m

Focus: Manual

Visible Light Camera Resolution: 5 MP

Visible Light Lens FOV: 59°

Fusion View: Yes

Color Palettes: 4

Display Resolution: 240 × 320 pxl

Video Format: MPEG-4, 1280 × 960 @ 30 fps

Image Format: JPEG (measurement data included)

Data Storage: 100 MB internal + SD card

Data Communication: USB, HDMI

IP Protection: IP40

Operating Temperature Range: -15 °C … 50 °C

Storage Temperature Range: -40 °C … 70 °C

Humidity (Operation & Storage): 10% … 90%

Drop Test: 2 m

Weight: 500 g

Dimensions (L × W × H): 224 × 77 × 96 mm

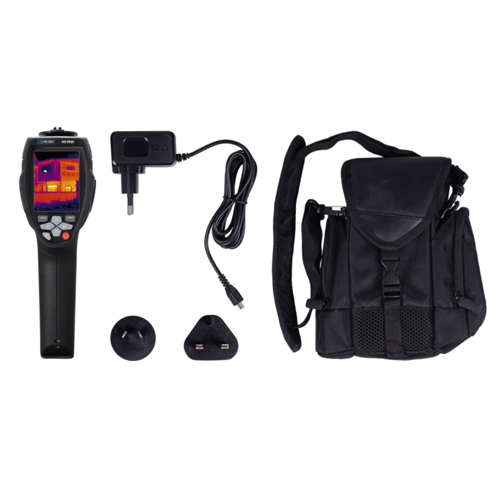

• MD 9930 Thermal camera

• USB cable

• USB OTG cable

• MicroSD card

• Li-ion battery

• AC adapter

• Non-slip strap

• Carrying case

• Instruction manual

• Download link for PC software
