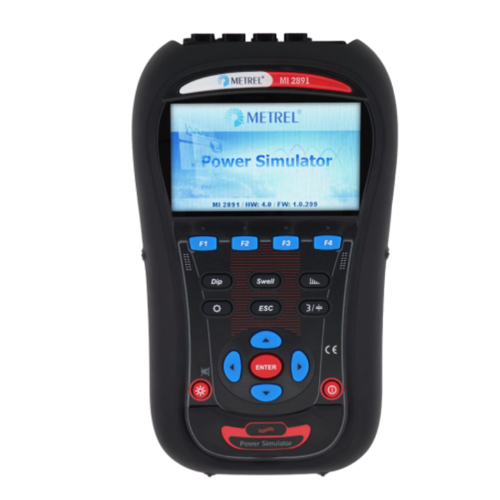

Metrel MI 2891 Standard set Power Calibrator/Simulator (350 Vrms, 2kA)

Fundamental RMS voltage output: 50 ... 300 V / 10 V / ± 0.1 %

Event RMS voltage output: 0 ... 350 V / 10 V / ± 0.1 %

Fundamental RMS current (A 1033 simulation): 100 mV ... 1 V / (16-bit resolution) / ± 0.1 %

Inrush RMS current output:

Range 1: 2.0 mVRMS ... 200.0 mVRMS / 0.1 mV / ± 0.5 % · URMS

Range 2: 20.0 mVRMS ... 2.0000 VRMS / 0.1 mV / ± 0.5 % · URMS

Frequency: 45 Hz ... 70 Hz / 1 Hz / ± 10 mHz

Flickers (Pst): 0.5 ... 5.0 / 0.1 / ± 1 %

Voltage harmonics (UhN, 2nd ... 50th): 1 % ... 100 % of fundamental / 1 % / ± 5 % of UhN

Current harmonics and THD (IhN, 2th ... 50th): 1 % ... 100 % of fundamental / 1 % / ± 5 % of IhN

Unbalance:

Voltage (u-, u0): 0.5 % ... 5.0 % / 0.1 % / ± 0.15 %

Current (i-, i0): 0.0 % ... 20 % / 0.1 % / ± 1 %

Overdeviation and Underdeviation:

U Over: 0 ... 50 % UNom / 0.001 % / ± 0.15 %

U Under: 0 ... 90 % UNom / 0.001 % / ± 0.15 %

Event duration: 10 ms ... 7 days / 1 ms / ± 1 cycle

Measuring category: CAT I / 300 V

Dimensions: 23 cm x 14 cm x 8 cm

Weight (with batteries): 1.34 kg

Display: Colour 4.3" TFT liquid crystal display (480 x 272 dots)

Batteries: 6 x 1.2 V NiMH rechargeable batteries type HR 6 (AA)

Working temperature range: -20 °C ... +40 °C

• Instrument Power Simulator

• Voltage measurement lead, (brown, black, grey, green, blue), 5 pcs

• Current measurement leads, 4pcs

• Labels for color coding

• Power supply adapter

• 1.2 V NiMH rechargeable battery, 6 pcs

• Soft carrying bag

• USB cable

• Instruction manual
