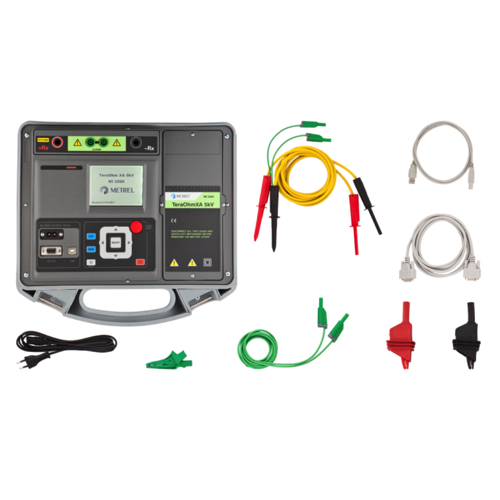

Metrel MI 3201 High Voltage Insulation Testers (10 TΩ; 250 V ~ 5 kV)

Insulation resistance:

5 kΩ … 999 kΩ / 1 kΩ / ±(5 % of reading + 3 digits)

1.00 MΩ … 9.99 MΩ / 10 kΩ / ±(5 % of reading + 3 digits)

10.0 MΩ … 99.9 MΩ / 100 kΩ / ±(5 % of reading + 3 digits)

100 MΩ … 999 MΩ / 1 MΩ / ±(5 % of reading + 3 digits)

1.00 GΩ … 9.99 GΩ / 10 MΩ / ±(5 % of reading + 3 digits)

10.0 GΩ … 99.9 GΩ / 100 MΩ / ±(5 % of reading + 3 digits)

100 GΩ … 999 GΩ / 1 GΩ / ±(5 % of reading + 3 digits)

1.00 TΩ … 10.00 TΩ / 10 GΩ / ±(15 % of reading + 3 digits)

Test voltage: 0 V … 5500 V / 1 V / ±(3 % of reading + 3 V)

Insulation leakage current:

0.00 nA … 9.99 nA / 0.01 nA / ±(5 % of reading + 0.05 nA)

10.0 nA … 99.9 nA / 0.1 nA / ±(5 % of reading + 0.05 nA)

100 nA … 999 nA / 1 nA / ±(5 % of reading + 0.05 nA)

1.00 µA … 9.99 µA / 10 nA / ±(5 % of reading + 0.05 nA)

10.0 µA … 99.9 µA / 100 nA / ±(5 % of reading + 0.05 nA)

100 µA … 999 µA / 1 µA / ±(5 % of reading + 0.05 nA)

1.00 mA … 5.50 mA / 10 µA / ±(5 % of reading + 0.05 nA)

Dielectric absorption ratio (DAR):

0.01 … 9.99 / 0.01 / ±(5 % of reading + 2 digits)

10.0 … 100.0 / 0.1 / ±5 % of reading

Polarization index (PI):

0.01 … 9.99 / 0.01 / ±(5 % of reading + 2 digits)

10.0 … 100.0 / 0.1 / ±5 % of reading

Dielectric discharge (DD):

0.01 … 9.99 / 0.01 / ±(5 % of reading + 2 digits)

10.0 … 100.0 / 0.1 / ±5 % of reading

Voltage AC / DC: 0 V … 600 V / 1 V / ±(3 % of reading + 4 V)

Frequency: 45.0 Hz … 65.0 Hz / 0.1 Hz / ±0.2 Hz

Capacitance:

0.0 nF … 99.9 nF / 0.1 nF / ±(5 % of reading + 4 nF)

100 nF … 999 nF / 1 nF / ±(5 % of reading + 4 nF)

1.00 µF … 50.00 µF / 10 nF / ±(5 % of reading + 4 nF)

Power supply: 6 × 1.2 V NiMH rechargeable batteries, type C

Display: Matrix LCD with backlight, 160 x 116 dots

Overvoltage category: CAT IV / 600 V

Protection class: Double insulation

COM port: USB

Dimensions: 310 x 130 x 250 mm

Weight: 3 kg
