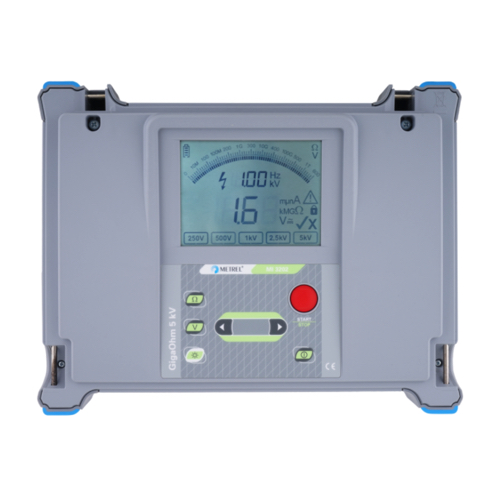

Metrel MI 3202 Standard set High Voltage Insulation Testers (1 TΩ; 250 V; 500 V; 1 kV; 2,5 kV; 5 kV)

Insulation resistance:

5 kΩ … 999 kΩ / 1 kΩ / ±(5 % of reading + 3 digits)

1.00 MΩ … 9.99 MΩ / 10 kΩ / ±(5 % of reading + 3 digits)

10.0 MΩ … 99.9 MΩ / 100 kΩ / ±(5 % of reading + 3 digits)

100 MΩ … 999 MΩ / 1 MΩ / ±(5 % of reading + 3 digits)

1.00 GΩ … 9.99 GΩ / 10 MΩ / ±(5 % of reading + 3 digits)

10.0 GΩ … 99.9 GΩ / 100 MΩ / ±(5 % of reading + 3 digits)

100 GΩ … 999 GΩ / 1 GΩ / ±(10 % of reading + 3 digits)

Test voltage: 0 V … 5500 V / 1 V / ±(3 % of reading + 3 V)

Voltage AC / DC: 0 V … 600 V / 1 V / ±(3 % of reading + 4 V)

Frequency: 45.0 Hz … 65.0 Hz / 0.1 Hz / ±0.2 Hz

Battery power supply: 6 × 1.2 V NiMH rechargeable batteries, type C

Display: Analogue / digital LCD with backlight

Overvoltage category: CAT IV / 600 V

Protection class: Double insulation

Dimensions: 310 x 130 x 250 mm

Weight: 3 kg

• Instrument MI 3202 GigaOhm 5 kV

• A 1036 Mains cable

• A 1808 10 kV shielded test lead with probe, black, 2m

• A 1807 10 kV shielded test lead with probe, red, 2m

• 10 kV crocodile clip, 2 pcs (black, red)

• A 1806 Guard lead, green, 2m

• A 1309 Crocodile clip, green

• A 1046 - 6 x 1.2 V NiMh rechargable batteries, type C

• Calibration certificate

• Instruction manual
