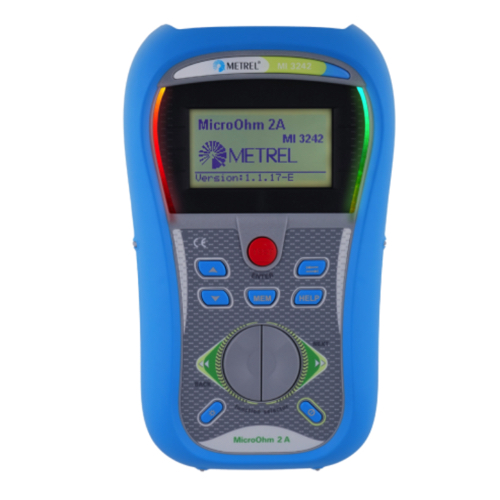

Metrel MI 3242 Standard set Continuity testers (1 μΩ ~ 199.9 Ω; 2 A)

Resistance (Range / Resolution / Accuracy / Current):

9.999 mΩ / 1 µΩ / ±(0.25 % of reading + 2 digits) / 2 A

99.99 mΩ / 10 µΩ / ±(0.25 % of reading + 2 digits) / 2 A

999.9 mΩ / 100 µΩ / ±(0.25 % of reading + 2 digits) / 2 A

99.99 mΩ / 10 µΩ / ±(0.25 % of reading + 2 digits) / 100 mA

999.9 mΩ / 100 µΩ / ±(0.25 % of reading + 2 digits) / 100 mA

9.999 Ω / 1 mΩ / ±(0.25 % of reading + 2 digits) / 100 mA

19.99 Ω / 10 mΩ / ±(0.25 % of reading + 2 digits) / 100 mA

999.9 mΩ / 100 µΩ / ±(0.25 % of reading + 2 digits) / 10 mA

9.999 Ω / 1 mΩ / ±(0.25 % of reading + 2 digits) / 10 mA

99.99 Ω / 10 mΩ / ±(0.25 % of reading + 2 digits) / 10 mA

199.9 Ω / 100 mΩ / ±(0.25 % of reading + 2 digits) / 10 mA

Voltage (Range / Resolution / Accuracy):

0 ... 49.9 V / 0.1 V / ±(2 % of reading + 2 digits)

50 ... 550 V / 1 V / ±(2 % of reading + 2 digits)

Frequency (Range / Resolution / Accuracy):

10.0 ... 99.9 Hz / 0.1 Hz / ±(0.2 % of reading + 1 digit)

100 ... 500 Hz / 1 Hz / ±(0.2 % of reading + 1 digit)

Power supply (batteries): 9 VDC (6 x 1.5 V battery or accu, size AA)

Operation: > 800 single measurements

Overvoltage category: CAT III / 600 V; CAT IV / 300 V

Protection class: Double insulation

Display: 128 x 64 dots matrix display with backlight

Communication: RS232 and USB

Memory: 1500 memory locations

Dimensions: 140 x 80 x 230 mm

Weight: 0.8 kg

• Instrument MI 3242 MicroOhm 2A

• Test cable with Kelvin probe

• Test cable 4 wire, 2.5 m

• Crocodile clip, 4 pcs (2x black, 2x red)

• Test probe, 2 pcs (black)

• Power supply adapter

• 1.2 V NiMH rechargeable battery, 6 pcs

• RS232 serial cable

• USB cable

• Soft carrying bag

• PC SW HVLink PRO

• Instruction manual

• Calibration certificate
