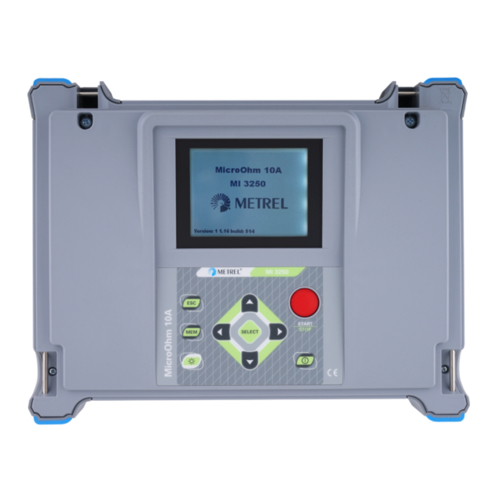

Metrel MI 3250 Standard set Continuity testers (0.1 µΩ ~ 2000 Ω ; 10 A)

Resistance (Range / Resolution / Accuracy / Current):

1.9999 mΩ / 0.1 µΩ / ±(0.25 % of reading + 0.01 % FS) / 10 A

19.999 mΩ / 1 µΩ / ±(0.25 % of reading + 0.01 % FS) / 10 A / 1 A

199.99 mΩ / 10 µΩ / ±(0.25 % of reading + 0.01 % FS) / 10 A / 1 A / 100 mA

1.9999 Ω / 100 µΩ / ±(0.25 % of reading + 0.01 % FS) / 1 A / 100 mA / 10 mA

19.999 Ω / 1 mΩ / ±(0.25 % of reading + 0.01 % FS) / 100 mA / 10 mA

19.999 Ω / 10 mΩ / ±(1 % of reading + 0.1 % FS) / 1 mA

199.99 Ω / 10 mΩ / ±(0.25 % of reading + 0.01 % FS) / 10 mA

199.99 Ω / 100 mΩ / ±(1 % of reading + 0.25 % FS) / 1 mA

1.9999 kΩ / 1 Ω / ±(1 % of reading + 0.25 % FS) / 1 mA

Power supply (mains voltage): 90 ... 260 VAC / 60 VA

Power supply (batteries): 6 x 1.2 V NiMH 3500 mAh batteries, type C

Operation: > 1000 single measurements

Overvoltage category: CAT IV / 300 V

Protection class: Double insulation

Display: 320 x 240 LCD with backlight

Communication: RS232 and USB

Memory: 1000 memory locations

Dimensions: 310 x 130 x 250 mm

Weight: 2.8 kg

• Instrument MI 3250 MicroOhm 10A

• Large Kelvin test clip, 2 pcs

• Test cable with Kelvin Probe, 2 pcs

• Test cable, 2.5 m, 4 pcs (2 x black, 2 x red)

• Crocodile clip, 4 pcs (2 x black, 2 x red)

• Test probe, 2 pcs (black)

• Mains cable

• USB cable and RS232 cable

• NiMH rechargeable batteries, type C, 6 pcs

• PC SW HVLink PRO

• Bag for accessories

• Instruction manual

• Calibration certificate
