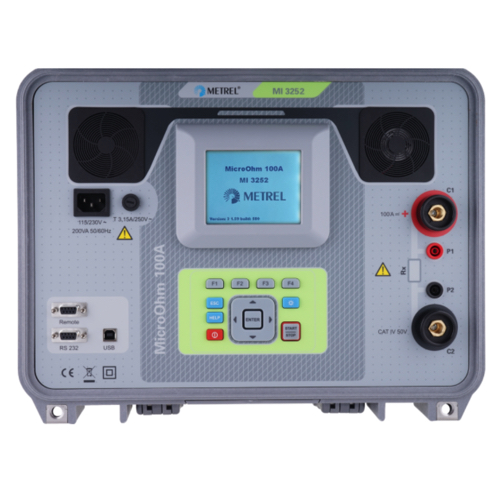

Metrel MI 3252 Continuity testers (230 / 115 VAC; 100 mA ... 100 A)

RESISTANCE

Resistance measurement (Range / Resolution / Accuracy / Current):

10.000 … 199.999 μΩ / 1 nΩ / ±0.25% of reading / 100 A

0.20000 … 1.99999 mΩ / 10 nΩ / ±0.25% of reading / 100 A / 50 A

2.0000 ... 19.9999 mΩ / 100 nΩ / ±0.25% of reading / 50 A / 10 A

20.000 … 199.999 mΩ / 1 µΩ / ±0.25% of reading / 1 A / 10 A

0.20000 … 1.99999 Ω / 10 µΩ / ±0.25% of reading / 1 A / 100 mA

2.0000 … 19.9999 Ω / 100 µΩ / ±0.25% of reading / 100 mA

VOLTAGE

Voltage measurement (Voltage Range / Resolution / Accuracy / Current):

1.000 mV … 20.000 mV / 1 µV / ±0.25% of reading / 100 A

20.00 mV … 200.00 mV / 10 µV / ±0.25% of reading / 100 A

10.00 mV … 100.00 mV / 10 µV / ±0.25% of reading / 50 A

100.0 mV … 1.0000 V / 0.1 mV / ±0.25% of reading / 50 A

20.0 mV … 200.0 mV / 0.1 mV / ±0.25% of reading / 10 A

200.0 mV … 2.0000 V / 0.1 mV / ±0.25% of reading / 1 A

20.0 mV … 200.0 mV / 0.1 mV / ±0.25% of reading / 10 A

200.0 mV … 2.0000 V / 0.1 mV / ±0.25% of reading / 1 A

20.0 mV … 200.0 mV / 0.1 mV / ±0.25% of reading / 100 mA

200.0 mV … 2.0000 V / 0.1 mV / ±0.25% of reading / 100 mA

GENERAL SPECIFICATIONS

Power supply: 230 / 115 VAC

Battery: 12 VDC / 12 Ah

Overvoltage category: 50 V / CAT IV

Display: 320 x 240 LCD with backlight

Communications: 2 x RS232 and USB

Memory: 512 kB. (1000 test results)

Dimensions: 410 x 175 x 370 mm

Weight: 11.8 kg
