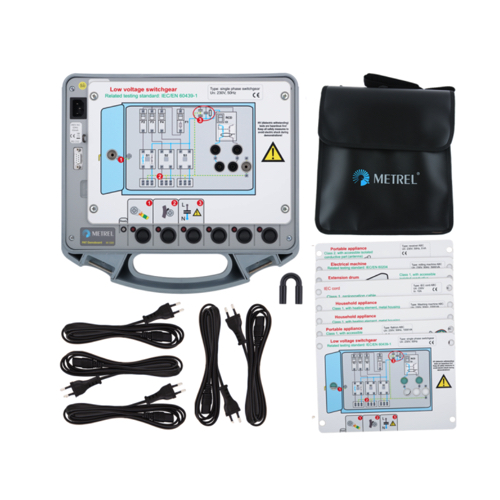

Metrel MI 3299 Demonstration Boards LV (10 kV CAT I)

Rated resistors: 10 kV

Resistive decade: 200 kΩ, 500 MΩ, 200 GΩ and 2 TΩ

resistors

HV capacitors range: 2.5 μF and 5 nF

Dimensions (W × L × H): 440 × 320 × 110 mm

Weight: 4 kg

Protection Classification: Basic insulation

Over-voltage Category: 10 kV CAT I

Pollution Degree: 2

Degree of Protection: IP 20

Reference Temperature Range: 10 °C ÷ 30 °C

Reference Humidity Range: 40 %RH ÷ 60 %RH

Working Temperature Range: 5 °C ÷ 40 °C

Maximum Relative Humidity: 90 % RH (5 °C ÷ 40 °C), non-condensing
