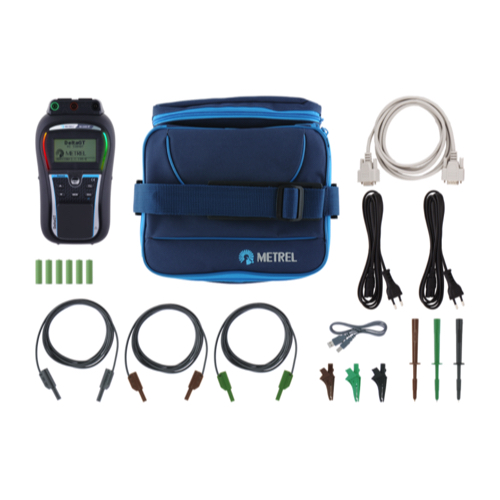

Metrel MI 3311 PAT Testers (250 VDC, 500 VDC; 200 mA)

PE continuity (200 mA):

0.00 Ω … 19.99 Ω / 0.01 Ω / ±(5 % of reading + 3 digits)

20.0 Ω … 199.9 Ω / 0.1 Ω / Indication only

200 Ω … 1999 Ω / 1 Ω / Indication only

Insulation resistance (250 VDC, 500 VDC):

0.00 MΩ … 19.99 MΩ / 0.01 MΩ / ±(5 % of reading + 3 digits)

20.0 MΩ ... 49.9 MΩ / 0.1 MΩ / ±(5 % of reading + 3 digits)

50.0 MΩ ... 199.9 MΩ / 0.1 MΩ / Indication only

Substitute leakage current:

0.00 mA … 9.99 mA / 0.01 mA / ±(5 % of reading + 3 digits)

10.0 mA … 20.0 mA / 0.1 mA / ±(5 % of reading + 3 digits)

Voltage:

0 V … 300 V / 1 V / ±(2 % of reading + 2 digits)

Polarity test:

Test voltage: < 50 VAC

Power supply: 6 x 1.2 V NiMH rechargeable batteries, type AA

Overvoltage category: CAT II / 300 V

COM port: RS232, USB and Bluetooth (optional A 1436 BT dongle)

Dimensions: 140 x 80 x 230 mm

Weight: 0.86 kg
