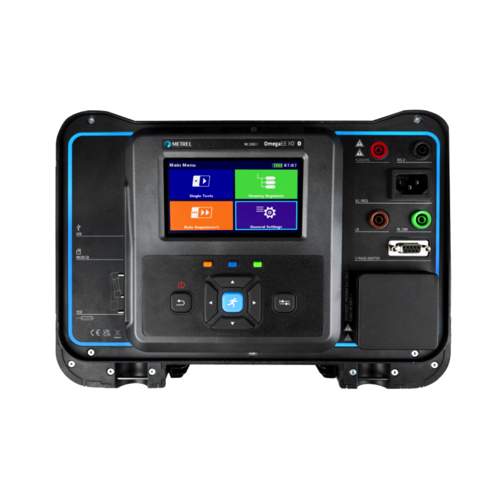

Metrel MI 3365 F Standard set PAT Testers (200 mA; 10 A, 25 A)

Continuity (200 mA):

0.00 Ω … 19.99 Ω / 0.01 Ω / ±(2 % of reading + 2 D)

20.0 Ω … 99.9 Ω / 0.1 Ω / ± 3 % of reading

100.0 Ω … 199.9 Ω / 0.1 Ω / ± 5 % of reading

200 Ω … 1999 Ω / 1 Ω / ± 5 % of reading

Continuity (10 A, 25 A)

0.00 Ω … 19.99 Ω / 0.01 Ω / ±(2 % of reading + 2 D)

20.0 Ω … 99.9 Ω / 0.1 Ω / ± 3 % of reading

100.0 Ω … 199.9 Ω / 0.1 Ω / ± 5 % of reading

200 Ω … 999 Ω / 1 Ω / Indicative

INSULATION RESISTANCE (Riso, Riso-S)

Insulation resistance (250 V, 500 V):

0.00 MΩ … 19.99 MΩ / 0.01 MΩ / ±(3 % of reading + 2 D)

20.0 MΩ … 99.9 MΩ / 0.1 MΩ / ± 5 % of reading

100.0 MΩ … 199.9 MΩ / 0.1 MΩ / ± 10 % of reading

Output voltage (Um): 0 V … 600 V / 1 V / ±(3 % of reading + 2 D)

LEAKAGE CURRENT MEASUREMENTS

Substitute Leakage Current (Isub, Isub-S):

0.00 mA … 1.999 mA / 0.01 mA / ±(3 % of reading + 3 D)

2.00 mA … 19.99 mA / 0.01 mA / ± 5 % of reading

Differential Leakage Current (Idiff):

0.000 mA … 1.999 mA / 1 µA / ±(3 % of reading + 3 D)

2.00 mA … 19.99 mA / 0.01 mA / ± 5 % of reading

Touch Leakage Current (Itou):

0.000 mA … 1.999 mA / 1 µA / ±(3 % of reading + 3 D)

2.00 mA … 19.99 mA / 0.01 mA / ± 5 % of reading

PE Leakage Current (Ipe):

0.000 mA … 1.999 mA / 1 µA / ±(3 % of reading + 3 D)

2.00 mA … 19.99 mA / 0.01 mA / ± 5 % of reading

POWER AND HARMONICS

Active Power (P):

0.00 W … 19.99 W / 0.01 W / ±(5 % of reading + 5 D)

20.0 W … 199.9 W / 0.1 W / ± 5 % of reading

200 W … 1999 W / 1 W / ± 5 % of reading

2.00 kW … 3.70 kW / 10 W / ± 5 % of reading

Apparent Power (S): 0.00 VA … 3.70 kVA / 0.01 VA to 10 VA / ±(5 % of reading + 10 D)

Reactive Power (Q): 0.00 var … 3.70 kvar / 0.01 var to 10 var / ±(5 % of reading + 5 D)

Power factor / Cos phi: 0.00 … 1.00 / 0.01 / ±(5 % of reading + 5 D)

Total Harmonic Distortion (THDU / THDI): 0.0 % … 99.9 % / 0.1 % / ±(5 % of reading + 5 D)

RCD / PRCD / EV RCD TESTING

Trip-out time (tΔN): 0 ms … 300 ms (up to 999 ms) / 1 ms / ± 3 ms

Trip-out current (IΔ): 0.2x IΔN … 2.2x IΔN / 0.05x IΔN / ± 0.1x IΔN

EV RCD Smooth d.c. Trip current: 1.5 mA … 6.0 mA / 0.05x IΔN / ±0.1x IΔN

PE conductor resistance (PRCD): 0.00 Ω … 19.99 Ω / 0.01 Ω / ±(2 % of reading + 2 D)

Flash Test: 1500 V, 3000 V (-0/+5%) / 0.00 mA … 2.50 mA / 0.01 mA / ±(5 % of reading + 5 D)

Memory: 8 GB microSD card (expandable to 32 GB)

Display: 4.3” high resolution colour TFT touch screen (480 x 272 pixels)

Communication: Bluetooth, USB, and RS-232

Mains supply: 110 V / 230 V AC, 50 Hz / 60 Hz (300 VA)

Protection classification: Class I (mains), Class II (battery)

Overvoltage category: CAT II / 300 V

Degree of protection: IP 65 (case closed), IP 40 (case open)

Dimensions (w x h x d): 31 cm × 13 cm × 25 cm

Weight: 6.1 kg

• Instrument MI 3365 F OmegaEE XD

• A 1493 Power cable L=2m 1.5mm2 EU, 2pcs

• A 1340 Test lead L=1.5m 2.5mm2 Black

• A 1014 Test probe Black CAT III 1000V

• A 1013 Crocodile clip Black CAT III 1000V

• A 1271 Carrying bag Size: S

• A 1727 USB cable L=1m

• A 1047 Test lead L=2m 0.75mm2 Red

• A 1064 Crocodile clip Red CAT III 1000V

• Instruction manual (short version)

• Calibration Certificate

• SW 1201 PC SW Metrel ES Manager BASIC
