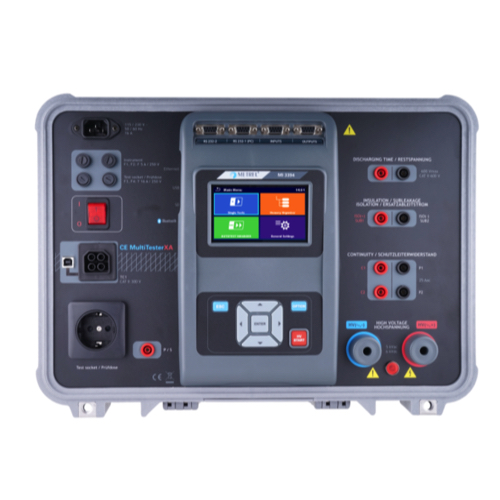

Metrel MI 3394 Line set Machine And Switchboard Testers (100 V – 5100 V; 500 V – 6000 V)

HVAC, Programmable HV AC, Output voltage 100 V – 5100 V, 10 V steps

Test voltage (AC):

0 ... 1999 V / 1 V / ±(3 % of reading)

2.00 ... 5.99 kV / 10 V / ±(3 % of reading)

Test current apparent: 0.0 ... 99.9 mA / 0.1 mA / ±(3 % of reading + 3 digits)

Capacitive current: 0.0 mA ... 99.9 mA / 0.1 mA / Indicative

Resistive current: -99.9 mA ... 99.9 mA / 0.1 mA / Indicative

Short circuit current: > 200 mA

Output power: 500 VA max

HVDC, Programmable HV DC, Output voltage 500 V – 6000 V, 50 V steps

Test voltage (DC):

0 ... 1999 V / 1 V / ±(3 % of reading)

2.00 ... 6.99 kV / 10 V / ±(3 % of reading)

Test current: 0.01 ... 9.99 mA / 0.01 mA / ±(5 % of reading + 3 digits)

Discharging time

t: 0.0 ... 9.9 s / 0.1 s / ±(5 % of reading + 3 digits)

Up: 0 ... 550 V / 1 V / ±(5 % of reading + 3 digits)

Continuity (0.2A, 4A, 10A, 25A)

Resistance (R):

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(2 % of reading + 2 digits)

20.0 Ω ... 99.9 Ω / 0.1 Ω / ±(3 % of reading)

100.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of reading)

200 Ω ... 999 Ω / 1 Ω / Indicative

Insulation resistance (250 V, 500 V, 1000 V)

Riso / Riso-s:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(3 % of reading + 2 digits)

20.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(10 % of reading)

Output voltage: 0 V ... 1200 V / 1 V / ±(3 % of reading + 2 digits)

Leakage Current Measurements

Substitute leakage (Isub / Isub s): 0.00 mA ... 19.99 mA / 10 µA / ±(5 % of reading + 3 digits)

Differential leakage (Idiff): 0.00 mA ... 19.99 mA / 0.01 mA / ±(3 % of reading + 5 digits)

PE leakage current (Ipe): 0.00 mA ... 19.99 mA / 0.01 mA / ±(3 % of reading + 3 digits)

Touch leakage current (Itou): 0.00 mA ... 19.99 mA / 0.01 mA / ±(3 % of reading + 3 digits)

Power and TRMS Measurements

Active Power (P): 0.00 W … 3.70 kVA / 0.01 VA to 10 VA / ±(5 % of reading + 5 D)

Apparent Power (S): 0.00 VA … 3.70 kVA / 0.01 VA to 10 VA / ±(5 % of reading + 10 D)

Reactive Power (Q): 0.00 var … 3.70 kvar / 0.01 var to 10 var / ±(5 % of reading + 10 D)

Power Factor (PF): 0.00i ... 1.00c / 0.01 / ±(5 % of reading + 5 digits)

Voltage (U): 0.1 V ... 264 V / 0.1 V to 1 V / ±(3 % of reading + 10 digits)

Current (I): 0 mA ... 16.00 A / 1 mA to 10 mA / ±(3 % of reading + 5 D)

Power supply: 110 V / 230 V AC, 50 Hz / 60 Hz

Overvoltage category: CAT II / 300 V; CAT II / 600 V

HV output: 5 kV a.c. / 6 kV d.c. (Double Insulation)

Communication: 4 x RS232, 1 x USB, 1 x Bluetooth

Dimensions (w x h x d): 43.5 cm x 29.2 cm x 15.5 cm

Weight: 17 kg

MI 3394 Instrument CE MultiTesterXA

A 1460 CE Test adapter

A 1105 Barcode scanner

A 1511 Tip Comander

Continuity test lead, 2.5 m, 2 pcs

Continuity test lead, red, 1.5 m, 1pcs

Insulation test lead, red, 2.5 m

Insulation test lead, black, 2.5 m

Crocodile clip, black, 3 pcs

Crocodile clip, red, 2 pcs

Discharge time cable

Mains cable

Bag for accessories

RS232 cable

USB cable

A 1521 USB isolator

Short instruction manual

Instruction manual

Metrel ES Manager BASIC Licence

SW 1201 Metrel ES Manager (program installation)

Datasheet
