Accuracy: ± 1 % (± 5 °C of calibration temperature, ± 2 % over temperature range 0 … 50 °C (32 … 122 °F)
IP Rating: IP 67

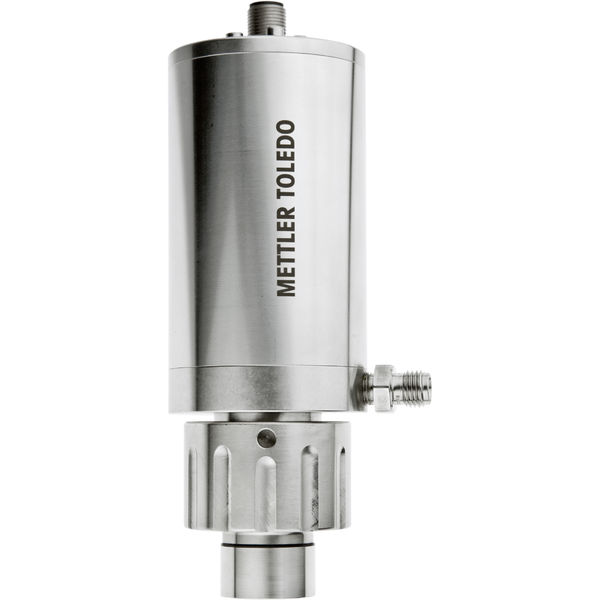

Model Family: InPro 5500i
CIP resistant: Yes
Response Time: 21 s (measurement cycle time)
Cable Connector: M12 5 PIN
Design Pressure: 290 psi (20 bar)
O-Ring Material: EPDM
Connector Design: Straight
Flow Requirements: >0.5 m/s
Measurement Cycle: < 20 s
Process Connection: 29 mm with cap nut M42
Operating Range CO2: 0 psi – 145 psi (0 bar – 10 bar)
Measurement Parameter: Carbon Dioxide
Measuring Temp. Range: 32 °F – 122 °F (0 °C – 50 °C)
Measurement Technology: Thermal Conductivity
Mechanical Temp. Range: 23 °F – 250 °F (-5 °C – 121 °C)
ISM (Digital) or Analog: ISM (Digital)
Certificates & Approvals: Quality certificate, Material certificate 3.1, Surface finish certificate
Operating Pressure (Bar): 0-20 bar
Operating Pressure (PSI): 362.6 psi
Temperature compensation: Automatic with built -in RTD
Wetted Metallic Material: 316L stainless steel
Wetted membrane material: Silicone
Autoclavable/Sterilizable: Sterilizable Only
Operating Range CO2 (g/L): 0 – 15
Primary Media/Application: Food and Beverage
Operational Range CO2 (V/V): 0 – 7
Measurement Range: Concentration: 0…10 bar pCO2, 0…15 g/L CO2, 0...7 V/V CO2
Measurement Range (Concentration): 0…145 psig pCO2
Hygienic/Biocompatibility Approvals: FDA
Surface Roughnes of Wetted Material: N5/Ra16 (Ra=0.4μm/16μin)
