Power: 25 V DC 0.1 A
Accuracy: ± (1 % of the reading + 8 ppb)

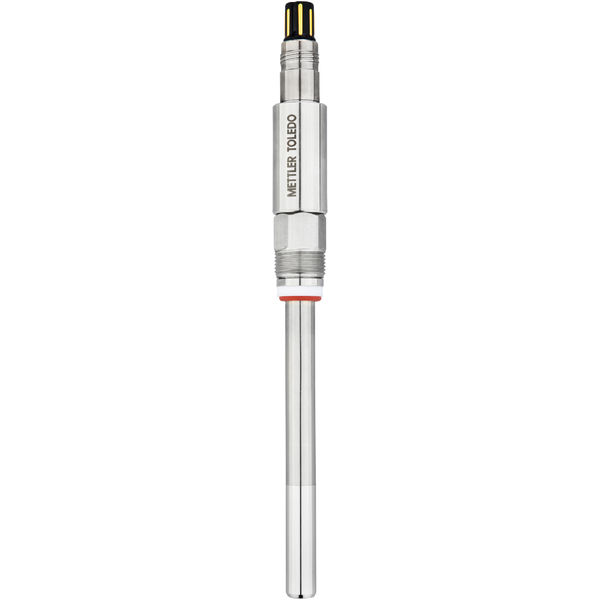

Model Family: InPro 6860i
CIP resistant: Yes
Response Time: T98 = < 90 s
Sensor Length: 120 mm
Cable Connector: VP6 / VP8 (analog / digital)
Design Pressure: 87 psi (6 bar)
O-Ring Material: EPDM
Sensor Diameter: 12 mm
Connector Design: Straight
Measurement Range: 0...saturation
Analog Integration: 4/20 mA HART active output
Anti-Bubble Design: No
Process Connection: Pg 13.5
Digital Integration: RS485 - ISM® and MODBUS RTU
Measurement Parameter: Oxygen
Measuring Temp. Range: 41 °F – 140 °F (5 °C – 60 °C)
Measurement Technology: Optical fluorescence quenching
Mechanical Temp. Range: -4 °F – 284 °F (-20 °C – 140 °C)
ISM (Digital) or Analog: ISM (Digital)
Certificates & Approvals: Quality certificate, Material certificate 3.1, Surface finish certificate, ATEX/IECEx certificate, FDA/USP Class IV
Hazardous Area Approvals: ATEX/IECEx: II 1/2G Ex ia/ib HC T6 Ga/Gb II1/2D Ex ia/ib nie T83 °C Da/Db
Operating Pressure (Bar): 0.2–6 Bar
Operating Pressure (PSI): 0–87 PSI
Wetted Metallic Material: 316L stainless steel
Wetted membrane material: PTFE
Autoclavable/Sterilizable: Yes
Primary Media/Application: Pharmaceutical/Life Science Production
Sterilizable/Autoclavable: Yes
Measured Pressure Resistance: 0 psi – 87 psi (0 bar – 6 bar)
Hygienic/Biocompatibility Approvals: FDA/USP Class 7
Surface Roughnes of Wetted Material: N5/Ra16 (Ra=0.4μm/16μin)
