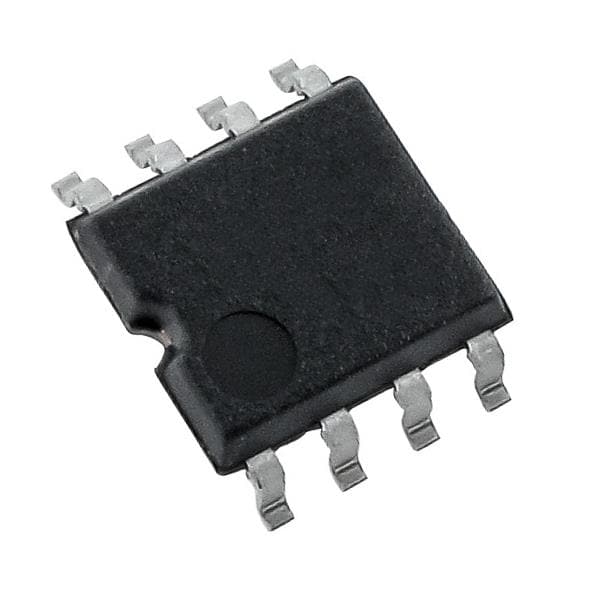

Microchip Technology 25LC256T-I/SM EEPROM 256k 32KX8 2.5V SER EE IND
Manufacturer: Microchip Technology Model: 25LC256T-I/SM - Contact
Width: 5.25 mm
Height: 1.98 mm
Length: 5.26 mm
Access Time: 50 ns
Memory Size: 256 kbit
Unit Weight: 540 mg
Organization: 32 k x 8
Data Retention: 200 Year
Interface Type: SPI
Mounting Style: SMD/SMT
Programming Voltage: 3.3 V, 5 V
Supply Current - Max: 6 mA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.5 V
Maximum Clock Frequency: 10 MHz
Operating Supply Current: 6 mA
Operating Supply Voltage: 2.5 V to 5.5 V
Active Read Current - Max: 6 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
