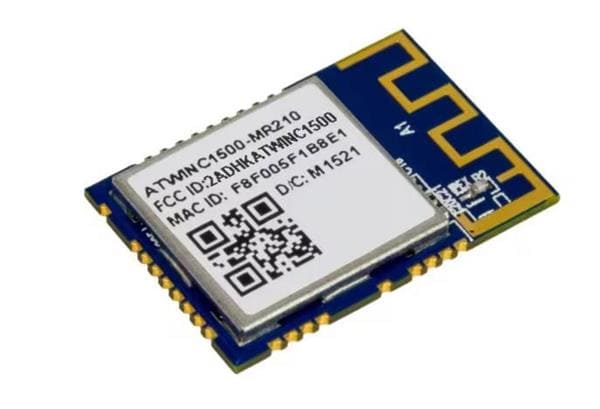

Microchip Technology ATWINC1500-MR210UB1977 RF Transceivers SmartConnect ATWINC1500 802.11b/g/n Module, PCB Ant., FW 19.7.7
Manufacturer: Microchip Technology Model: ATWINC1500-MR210UB1977 - Contact
Data Rate: 72.2 Mb/s
Frequency: 2.4 GHz
Dimensions: 14.7 mm x 21.7 mm x 2.1 mm
Antenna Type: u.FL Antenna
Output Power: 18.5 dBm
Interface Type: I2C, SPI
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.7 V
Operating Supply Voltage: 3.3 V
Protocol - WiFi - 802.11: 802.11 b/g/n
Supply Current Receiving: 83 mA
Supply Current Transmitting: 287 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
