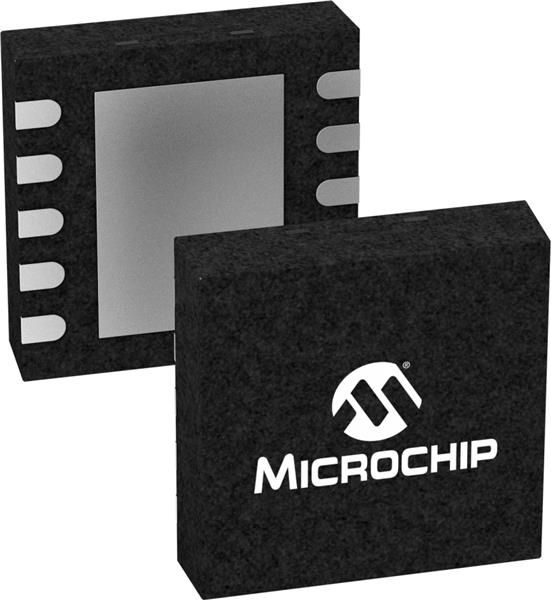

Microchip Technology MCP33111-10-E/MN High-Precision Data Acquisition 12-bit, 1 Msps, single channel, single-ended SAR ADC

Shutdown: Shutdown

Input Type: Single-Ended

Resolution: 12 bit

Architecture: SAR

Qualification: AEC-Q100

Sampling Rate: 1 MS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External

Power Consumption: 6.2 mW

Reference Voltage: 2.5 V to 5.1 V

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Analog Supply Voltage: 1.8 V

Digital Supply Voltage: 1.7 V to 5.5 V

INL - Integral Nonlinearity: 0.12 LSB

SNR - Signal to Noise Ratio: 73.8 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.06 LSB

THD - Total Harmonic Distortion: - 94.4 dBc

SFDR - Spurious Free Dynamic Range: 97.4 dB

SINAD - Signal to Noise and Distortion Ratio: 73.8 dB
