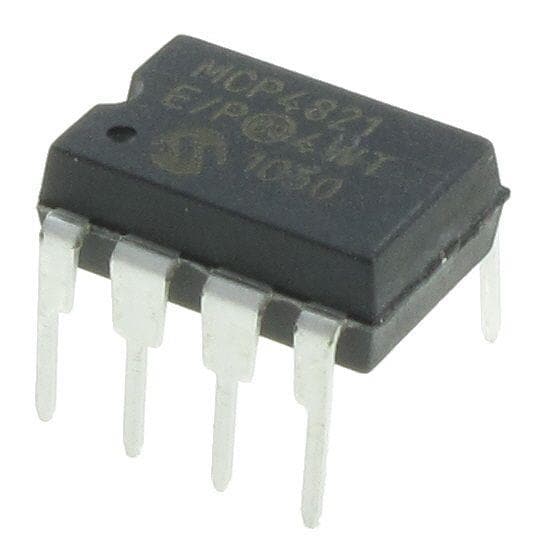

Microchip Technology MCP4821-E/P DACs - Digital to Analog Converters Single 12-bit DAC

Name: Microchip Technology MCP4821-E/P DACs - Digital to Analog Converters Single 12-bit DAC
Brand: Microchip Technology

ModelMCP4821-E/P

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Height: 3.3 mm

Resolution: 12 bit

Output Type: Voltage Buffered

Unit Weight: 1 g

Architecture: Resistor-String

Qualification: AEC-Q100

Settling Time: 4.5 us

Interface Type: 3-Wire, Microwire, SPI

Mounting Style: Through Hole

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 2.7 V to 5.5 V

Digital Supply Voltage: 2.7 V to 5.5 V

Operating Supply Voltage: 5 V

INL - Integral Nonlinearity: +/- 2 LSB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: +/- 0.2 LSB
