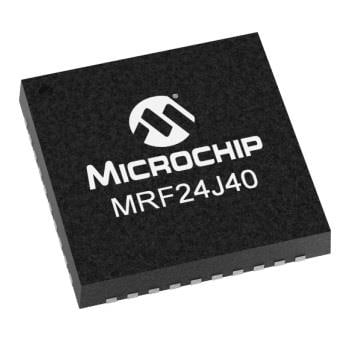

Microchip Technology MRF24J40MD-I/RM Zigbee Modules 2.4 GHz 802.15.4 RF Transceiver Mod
Manufacturer: Microchip Technology Model: MRF24J40MD-I/RM - Contact
Range: 4000 ft
Data Rate: 250 kb/s
Frequency: 2.405 GHz to 2.48 GHz
Dimensions: 22.9 mm x 33 mm
Sensitivity: - 104 dBm
Unit Weight: 10 g
Output Power: 19 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Antenna Connector Type: PCB
Operating Supply Voltage: 3.3 V
Supply Current Receiving: 32 mA
Supply Current Transmitting: 140 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
