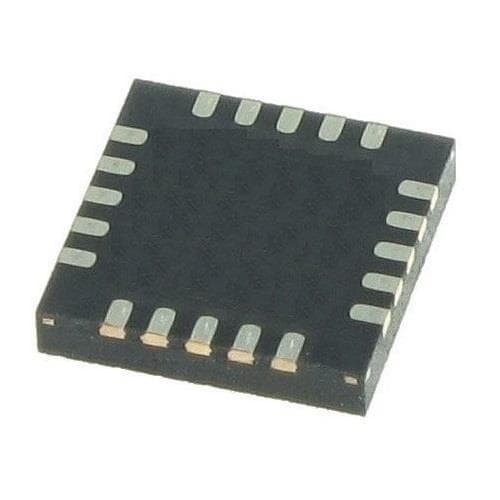

Microchip Technology PIC16LF1509-I/GZ MCUs 8 Bit MCU 14KB Flash 512B RAM, 10-bit ADC

Core: PIC16

Unit Weight: 123 mg

Data RAM Size: 512 B

Data RAM Type: SRAM

ADC Resolution: 10 bit

DAC Resolution: 5 bit

Data Bus Width: 8 bit

Interface Type: EUSART, I2C, SPI

Mounting Style: SMD/SMT

Number of I/Os: 18 I/O

Development Kit: DM164137, DM160228, DM163046

Watchdog Timers: Watchdog Timer, Extended

Processor Series: PIC16LF

Program Memory Size: 14 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Number of ADC Channels: 12 Channel

Maximum Clock Frequency: 20 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
