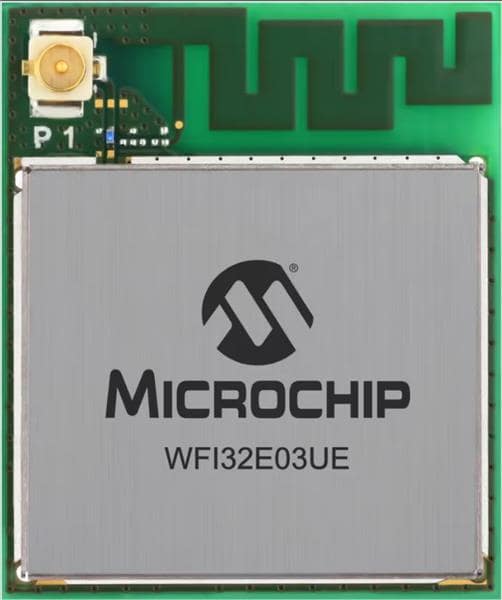

Microchip Technology WFI32E03UE-I WiFi Modules 54-pad Wi-Fi SoC module, 802.11 b/g/n, 2MB Flash, 640KB RAM, u.FL ant
Manufacturer: Microchip Technology Model: WFI32E03UE-I - Contact
Data Rate: 22 Mb/s, 28 Mb/s
Frequency: 2.4 GHz
Dimensions: 24.5 mm x 20.5 mm x 2.5 mm
Output Power: 20.5 dBm
Interface Type: CAN 2.0 A/B, CAN FD, Ethernet, I2C, I2S, SPI, UART, USB 2.0 OTG
Protocol Supported: 802.11 b/g/n
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Antenna Connector Type: U.FL
Protocol - WiFi - 802.11: 802.11 b/g/n
Supply Current Receiving: 88 mA
Supply Current Transmitting: 287 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
