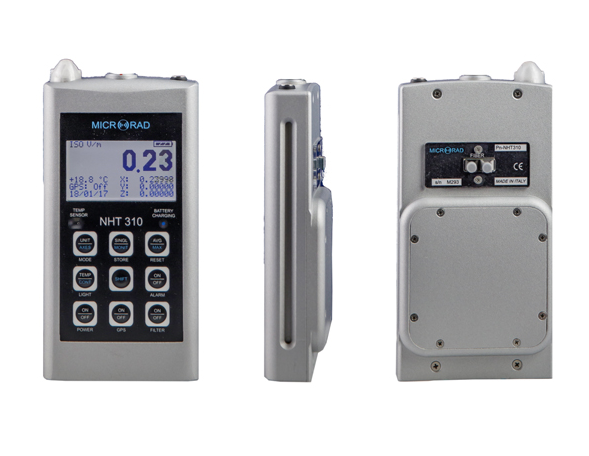

Microrad NHT 310 Broadband EM Field Meter (DC÷40 GHz)

FREQUENCIES

Frequency range: DC to 40GHz using different probes B, E, H

DISPLAY

Type: Transflective LCD monochrome backlit

Size: 2.8” 128 x 64 pixel

MEASUREMENT FUNCTIONS

Measurement units: V/m, A/m, W/m2 , mW/cm2 , µT, mT (depending on probe)

Display range: from 0.00001 to 999’999

Result types: rms isotropic value (ISO) and X, Y, Z components, maximum value (MAX), time average (AVG), space average (SPT), median (calculated from icroLink software)

Time average: Time window length selectable from 4 sec to 192min with 1 min step; Post processing using 24H time window with MicroLink software

Space average: RMS average of the value stored as single acquisition

STORAGE MEMORY

Single acquisition: 432 non-volatile values

Monitoring: 8 sequences non-volatile (21.504 total values)

INTERFACES

Optical interfaces: Serial, full duplex, 10 Mbps

Probe interface: Plug-and-play auto detection, LEMO™ connector

GPS

Integrated receiver: Sensibility -163dBm, 48 channels, L1 C/A code, update rate 4Hz

GENERAL CHARACTERISTICS

Recommended calibration interval: 24 months

Battery: Alkaline or rechargeable NiMH, 4 x AA size (Mignon), 2800 mAh

Operation time: > 72 hours (backlight and GPS off).

Charging time: 4 hours

Operating temperature: -10 °C to +50 °C

Storage temperature: -20 °C to +70°C

Humidity: 5 to 95%, non-condensing

Size (h x w x d): 183 x 92 x 38 mm (without probe)

Weight: 700 g (including batteries without probe)
