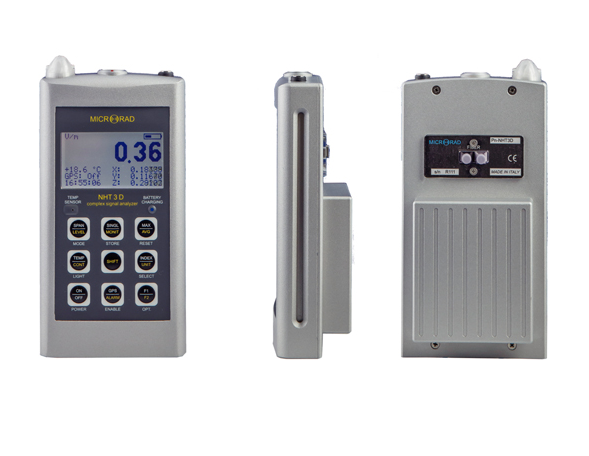

Microrad NHT 3D Analyzer For Complex Signals (0 Hz – 40 GHz)

FREQUENCIES

Frequency range: Selective mode: DC – 400 kHz; Wide band mode: 100 kHz – 40GHz

DISPLAY

Type: Transflective LCD monochrome backlit

Size: 2.8” 128 x 64 pixel

SAMPLING

Rate: Up to 2 Msps

MEASUREMENT FUNCTIONS

Measurement units: V/m, A/m, W/m2, mW/cm2, uT, mT (depending on the probe)

Display range: from 0.00001 to 999’999

Result types: Instantaneous ISO (short term r.m.s.) and Cartesian components; MAX of ISO instantaneous value

Time average: AVG: r.m.s. value in moving window selectable from 1s to 192min

24H moving average available for monitoring using software

Space Average: SPT: single storing average value

Normative mask weighted indexes: WP, Ib

Indexes on sw Waves: RMS, Peak, WP, Ib, II98, IRSS, IRMS, Fmax

Max Hold: Selectable on instrument and/or software

STORAGE MEMORY

Single acquisition: 1’024 non-volatile values

Monitoring: 29 non-volatile sequences

Sampling buffer: 65’536 memory points

INTERFACES

Optical interfaces: Serial, full duplex, 10 Mbps

Probe interface: Plug-and-play auto detection, LEMO™ connector

GPS

Integrated receiver: Sensibility -163dBm, 48 channels, L1 C/A code, update rate 4Hz

GENERAL CHARACTERISTICS

Recommended calibration interval: 24 months

Battery: Li-Ion rechargeable

Operation time: > 24 ore (backlight and GPS off).

Charging time: 3 hours

Operating temperature: -10 °C to +50 °C

Storage temperature: -20 °C to +70°C

Humidity: 5 to 95%, non-condensing

Size (h x w x d): 183 x 92 x 47 mm (without probe)

Weight: 700 g (including batteries without probe)
