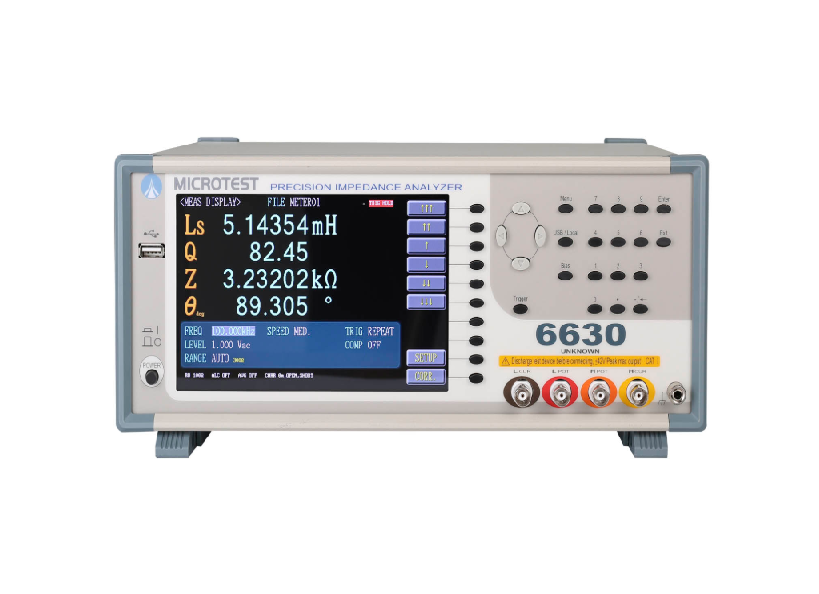

MICROTEST 6630 Precision LCR Meter (10Hz ~ 3 MHz)
Manufacturer: MICROTEST Model: 6630 P/N: 6630-3 Origin: Taiwan Guarantee: 12 Month - Contact
Test Frequency: 10Hz ~ 3MHz
Basic Accuracy: ± 0.05%
AC Measurement
Test Signal Voltage Level: 10mV - 2Vrms
Voltage Minimum Resolution: 1mV
Test Signal Current Level: 200µA - 20mArms
Current Minimum Resolution: 10µA
Accuracy:
ALC ON：6％ * Current ± 20µA
ALC OFF：10％ * Current ± 20µA
DC Measurement: 1V (fixed)
Test Time (The fastest): < 3ms
Output Impedance: 25Ω/100Ω, switchable (Nominal value)
Interface: RS-232、GPIB、Handler、LAN、USB Host/Device
Power Supply: Voltage 90V ～ 264Vac
Frequency: 47Hz ~ 63Hz
Power Consumption: Low power consumption: Maximum 30W (Nominal value)
Display: 7.0”TFT, 800x480 color screen
Environment
Temperature: 10℃ ～ 40℃
Humidity: ≦80%
Dimension (W*H*D): 336x147x340 mm
Weight: 3 kg
