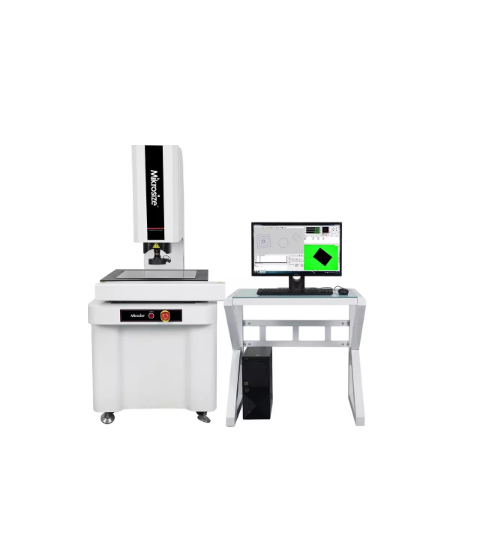

X,Y-axis Travel: 400x300mm
Z-axis Travel: 200mm
Dimensions(mm): 1000x620x990
Max.load Capacity: 25kg
Net Weight: 280kg
X/Y/Z 3-axis Linear Scale(2.5D): Resolution:0.5 µm
Accuracy(um): E1(x/y)=2.5+L/100
Repeatability: ±2um
Movement System: X,Y,Z-axis:Screw Rod
Movement Control: CNC Auto Servo Movement Control
Video System:
1/2" color CCD Camera
Auto Coaxial Zoom Lens
Optical Magnification:0.7-4.5x; Video Magnification:20-148x
Working Distance(Standard): 92mm
Object View(Standard): 11.1~1.7mm
Speed(mm/s): X,Y-axis: 200, Z-axis:50
3D Measuerment: 3D Module and UK Renishaw Touch Probe
Measuring Software: Mikromea-CNC 2.5D CNC Measuring Software
Working Environment: Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity: 30~80%
Power Source: AC 100~220V 50/60HZ 10A
Standard Delivery
Measuring Software: 1pc
Mainframe/Dell PC System: 1 set
Linear Scale/Calibration Block: 1pc
CCD Camera/Video Capture Card: 1pc
Scale Transfer /Movement Control Card: 1pc
100mm Length Block(3D): 1pc
Manual Coaxial Zoom Lens(VME): 1pc
Auto Coaxial Zoom Lens(VMK): 1pc
48 –Division LED Illumination: 1pc
Renishaw Probe MCP-K2(3D): 1pc
Optional Delivery
0.5x Auxilliary Objective Lens: MS-OB05X
2x Auxilliary Objective Lens: MS-OB2X
Coaxial Optical Lens: MS-COX
Laser Displacement Sensor: MS-LASER
