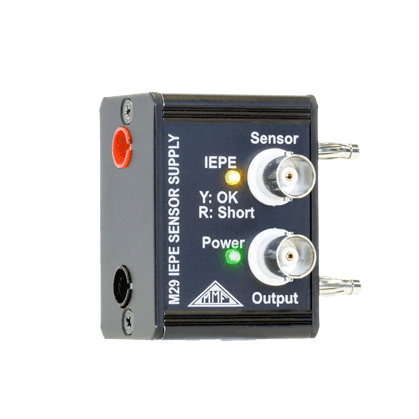

Input / Output: BNC sockets
Output circuit: AC coupled over 10 µF; 220 kW parallel with output
Load resistance > 1 MW for lower frequency limit 0.1 Hz (-3 dB)
Dynamic range: up to ± 10 V (depending on sensor type)
Constant current source: 3.5 .. 4.5 mA, compliance voltage >22 V
IEPE sensor status indicator: bi-color LED; off = input open; yellow = 1 .. 24 V = OK; red = shorted
Gain / Accuracy: 1 ± 0,5 %
Output noise: < -120 dBV / < 1 µV (0.3 Hz .. 40 kHz)
Frequency range (- 3 dB): 0.1 Hz .. 100 kHz
Power supply: US = 5 .. 28 VDC; 100 .. 15 mA; insulated from signal path;
via DIN 45323 circular power connector (positive terminal at tip)
or two banana plugs
Case: Aluminum
Supplied accessories: 2 screw-in banana plugs for power supply connection with other modules
Optional accessories: PS1600: mains plug adapter for 100 .. 240 VAC; 12 VDC / 500 mA
sufficient for up to 10 units M29
M29+33DIN: 35 mm DIN rail adapter
Operating temperature range: -10 .. 55 °C; 95 % relative humidity; no condensation
Weight: 100 g
Dimensions (W x H x D): 40 mm x 55 mm x 45 mm
