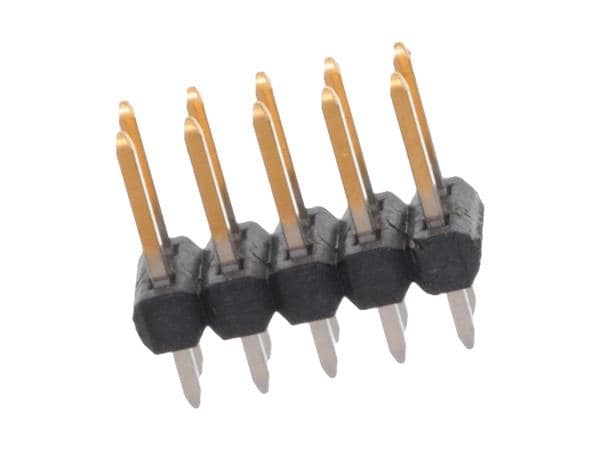

Molex 10-89-7103 Breakaway CGrid VT Bkwy Hdr 30 SAu 10Ckt (320/110)

Pitch: 2.54 mm (0.1 in)

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 678 mg

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Tin

Housing Material: Thermoplastic (TP)

Termination Style: Solder Pin

Mating Post Length: 13.21 mm (0.52 in)

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Termination Post Length: 2.79 mm (0.11 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
