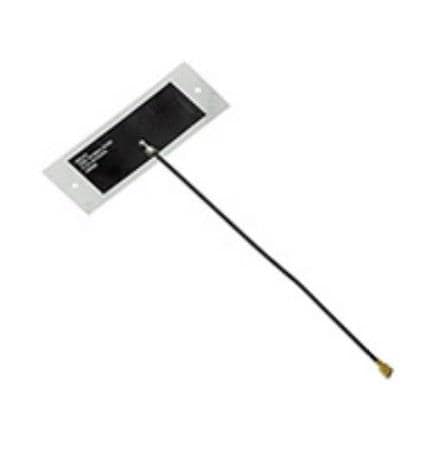

Molex 206560-0050 Passive Antenna GNSS Flex Antenna 50mm Cable Length
Manufacturer: Molex Model: 206560-0050 - Contact
Gain: 1.1 dBi, 1.2 dBi, 1.5 dBi
Style: T-Bar Flex
Width: 15.4 mm
Height: 0.1 mm
Length: 40.4 mm
Impedance: 50 Ohms
Cable Type: 50 mm Coax
Technology: GNSS
Unit Weight: 466 mg
Cable Length: 50 mm
Polarization: Linear
Mounting Style: Adhesive Mount
Number of Bands: 3 Band
Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz
Mechanical Style: PCB Trace
Maximum Frequency: 1.605 GHz
Minimum Frequency: 1.558 GHz
Termination Style: Connector
Antenna Connector Type: IPEX MHF
Protocol - GPS, GLONASS: GLONASS, GNSS, GPS
