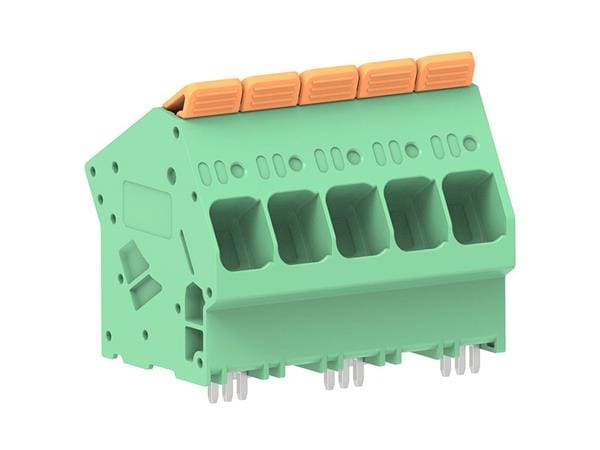

Molex 224932-0005 Fixed Terminal Blocks 10.00mm Pitch Lever Activated Fixed Mount PCB Term Block 35 Entry LF Term 5 Ckt
Manufacturer: Molex Model: 224932-0005 - Contact
Color: Green
Pitch: 10 mm
Current Rating: 66 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Voltage Rating: 600 V
Wire Gauge Max: 4 AWG
Wire Gauge Min: 18 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Connection Method: PCB Mount
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 5 Position
