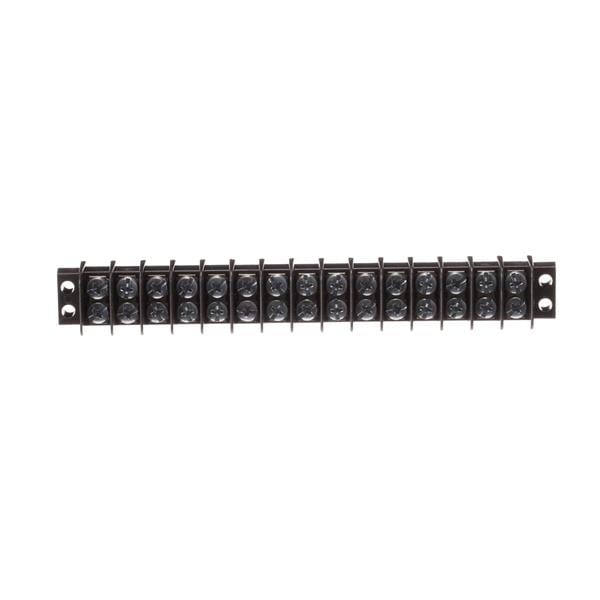

Molex 38760-0115 Low Profile Barrier Terminal Strip CB BTS STD 15 ASY CB BTS STD 15 ASY
Manufacturer: Molex Model: 38760-0115 - Contact
Color: Black
Pitch: 9.53 mm
Width: 22.4 mm
Height: 16 mm
Length: 159.5 mm
Unit Weight: 96.805 g
Current Rating: 15 A
Mounting Style: Panel Mount
Number of Rows: 2 Row
Voltage Rating: 300 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 22 AWG
Contact Material: Brass
Housing Material: Thermoplastic (TP)
Termination Style: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 15 Position
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
