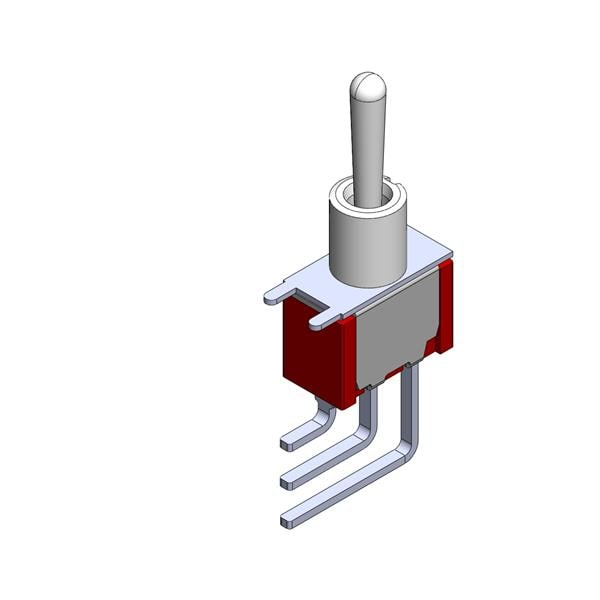

Mountain Switch 108-0021-EVX Toggle Switch SPDT ON-OFF-ON
Manufacturer: Mountain Switch Model: 108-0021-EVX - Contact
Actuator: Bat
Illuminated: Non-Illuminated
Unit Weight: 4.700 g
Bushing Size: Unthreaded
Contact Form: SPDT
Terminal Seal: Sealed
Actuator Style: Bat
Current Rating: 2 A, 5 A
Mounting Style: PCB Mount, Right Angle, Vertical
Actuator Length: 11.69 mm
Contact Plating: Silver
Switch Function: ON - OFF - ON
Contact Material: Silver, Gold
Housing Material: Stainless Steel
Actuator Material: Brass
Termination Style: Solder Pin
Voltage Rating AC: 120 VAC, 250 VAC
Voltage Rating DC: 28 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
