Driver type: Shaft
Torque range : 18 - 177 lbf.in / 203.4 - 2000 cN.m
Size ( LxW in): 6 x 1.5 in
Weights: 0.5 lbs/ 0.2 kg
Rated Output: +/- 5VDC +/- 0.2% FS
Excitation Recommended: 11VDC to 26VDC (pole secure)
Nonlinearity: 0.2% FS
Usable Temperature Range 41 to 122 F
Mating Connector: Tuchel Series 581 (98-2030-09-12)
Safe Overload: 150% of Rated Output
FEATURES:

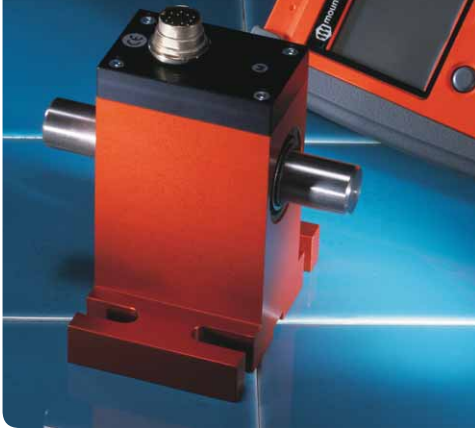

The Mountz brushless rotary torque and angle shaft sensors are design for precision torque testing. Used for a variety automotive applications like starters, alternators, wiper motors, ABS, brakes, clutches, servo steering components, etc. Ideal for motor testings or rotational measurement applications.
Non-contact signal transfer and maintenance free.
The brushless rotary torque & angle sensor is a compact design & bi-directional.
Features a built-in mounting base.
Used for a variety automotive applications like starters, alternators, wiper motors, ABS, brakes, clutches, servo steering components, etc.
Motor testing, high RPM tools or rotational measurement applications.
Angle output: 2-channel quadrature, 360 pulses per rotation.
Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
Accuracy ± .2% of full scale*.
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).
