Input Driver type: 1/4 M/Hex
Output Driver type: 1/4 F/Hex
Torque range : 10 - 28 ozf.in/ 7 - 20 cN.m
Rated Output: +/- 5VDC +/- 0.2% FS
Excitation Recommended: 11VDC to 26VDC (pole secure)
Nonlinearity: 0.2% FS
Usable Temperature Range 41 to 122 F
Mating Connector: Tuchel Series 581 (98-2030-09-12)
Safe Overload: 150% of Rated Output
FEATURES:

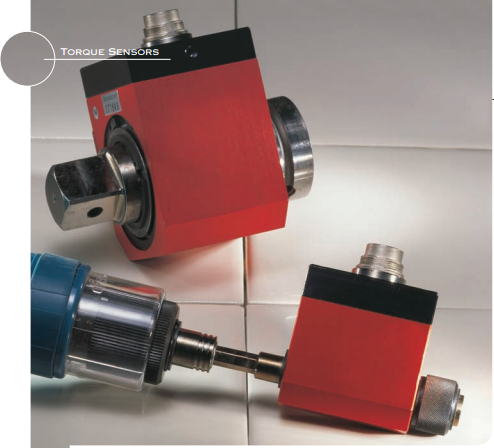

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
Non-contact signal transfer and maintenance free.
Angle Output: 2-channel quadrature, 360 pulses per rotation.
Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
Compact design & bi-directional.
For use with most power tools, high RPM tools, or rotational measurement applications.
Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT.
Accuracy ± .2% of full scale*.
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).
