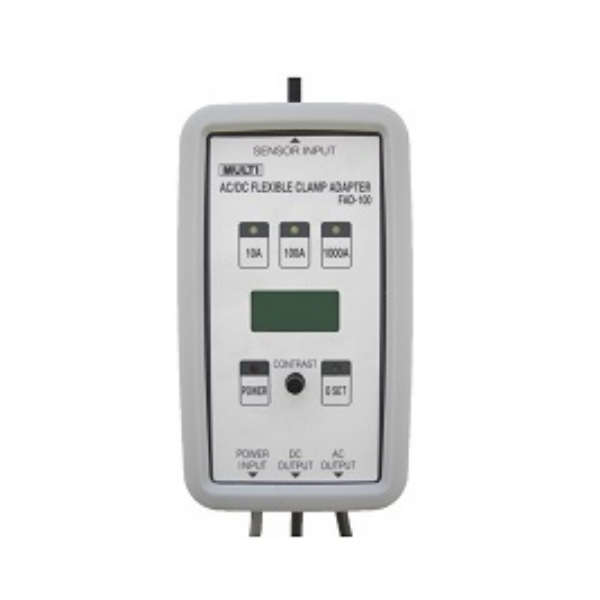

MULTI FAD-100 AC/DC Flexible Leakage/Line Current Probe (10A/100A/1000A)
Manufacturer: MULTI Model: FAD-100 - Contact
Inside diameter of CT: φ200mm
Measuring Range: AC/DC10A/100A/1000A(AC 50/60 Hz & DC)
Sampling Rate: 2 Times/sec
AC/DC Output Voltage: 1.5V / F.S. of Respective Range
Accuracy: ±3% rdg ±10dgt
Power Supply Voltage: DC 12V
Current Consumption: Approx. 100mA
Applicable Circuit Voltage: Less than AC/DC 600V (insulated coating wire)
Withstanding Voltage: AC2200V/1 minute
Ambient Operating Temperature: 0℃~40℃ (<85%RH, w/o condensation)
Ambient Storage Temperature: -10℃~60℃ (<70%RH, w/o condensation)
Dimension of Controller: 135 x 76 x 35mm
Weight CT: Approx. 270g
Controller: 250g
