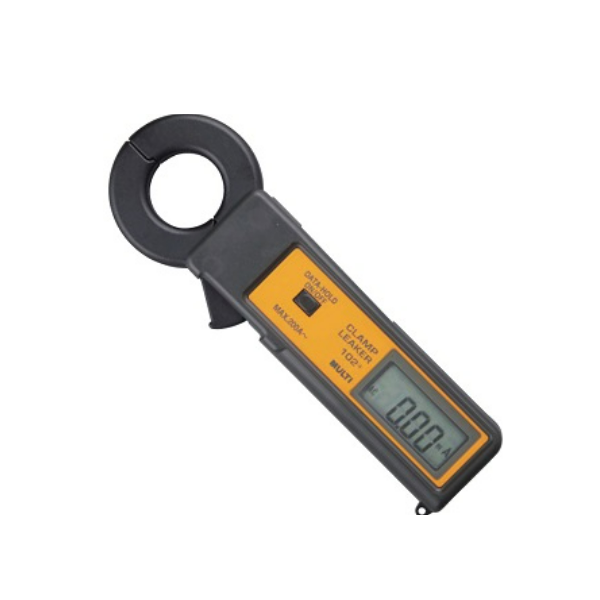

MULTI M-102+ Mini AC Leakage Current Clamp Tester (30 mA/300 mA/30 A/200A)

Display: 3.5 digit LCD, max. reading of 3200

Measuring ranges: AC 30 mA/300 mA/30 A/200A

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

Range/Resolution/Accuracy:

30/300mA/0.01mA/±2％rdg±5dgt

30A/200A/0.01A/±2％rdg±5dgt

Inside diameter of CT: φ23mm

Withstanding voltage: AC 2000V/1 minute

Sampling rate: 2 times/sec

Operating temperature: 0～40℃, < 80%RH (without condensation)

Storage temperature: -10～60℃, < 70%RH (without condensation)

Power supply: 1.5V (LR-44 or SR-44) battery×2

Dimension: 48(W)×145(H)×23(D)mm

Weight: Approx. 85g

Accessories: Soft case, Batteries, Instruction manual
