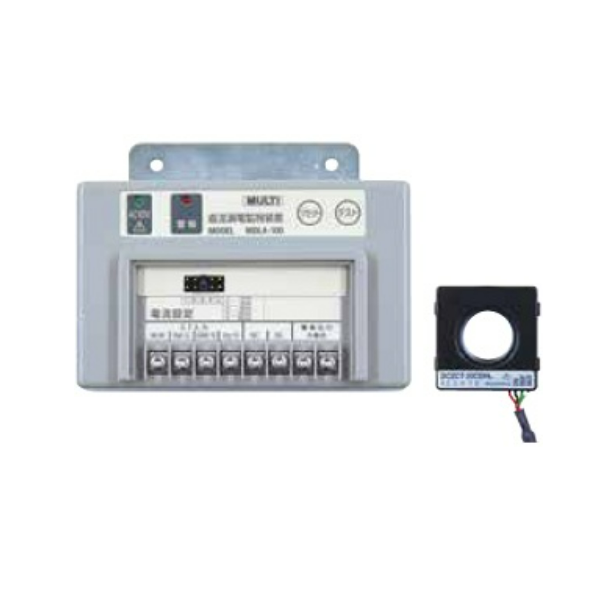

MULTI MDLA-100 DC Leakage Current Monitor (10/30/50/100/200mA, φ20mm)

Name: MULTI MDLA-100 DC Leakage Current Monitor (10/30/50/100/200mA, φ20mm)
Brand: MULTI

ModelMDLA-100

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Numbers of Monitoring Circuit: 1 Channel

Setting Current Values: 10/30/50/100/200mA

Measurement: DC Leakage Current

Detection Accuracy: within±10%±1mA to each range

Inside Diameter: φ20mm

Power Supply Voltage: AC100V±10%, 50/60Hz

Operating Temperature: 0~50℃, less than 85%RH (w/o condensation)

Storage Temperature: - 20~60℃, less than 85%RH (w/o condensation)

Withstanding Voltage: AC1000V

Insulation Resistance:

more than 100MΩ by DC500V insulation tester

between power input and case

more than 100MΩ by DC500V insulation tester

between signal output and case

Dimension & Weight: 85.5(H)x110(W)x 5(D)mm, Approx. 300gs
