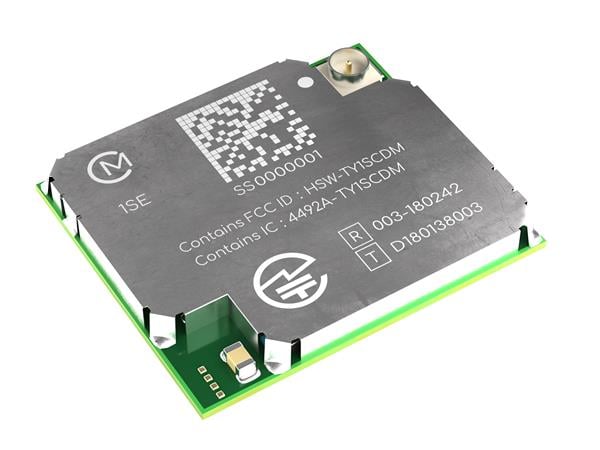

Murata Electronics LBAD0ZZ1SE-743 LTE CAT M1/NBIoT Module BLE Type 1SE End Device
Manufacturer: Murata Electronics Model: LBAD0ZZ1SE-743 - Contact
Dimensions: 18 mm x 15.4 mm x 1.8 mm
Output Power: 23 dBm
Interface Type: GPIO, I2C, PWM, SPI, UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 5 V
Supply Voltage - Min: 3.3 V
Antenna Connector Type: u.FL
Protocol - GPS, GLONASS: GNSS, GLONASS, GPS
Operating Supply Voltage: 3.3 V to 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: NBIoT, LTE
