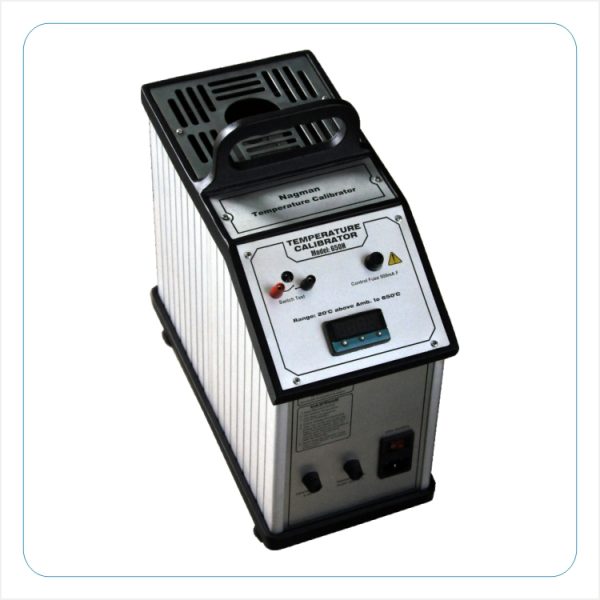

Nagman 650-H Medium Temperature Dry Block Calibrator (20°C~650°C, 0.1°C)
Manufacturer: Nagman Model: 650-H Origin: India Guarantee: 12 Month - Contact
Range: 20°C above Ambient to 650°C
Resolution: 0.1°C
Accuracy: ±1.5°C
Stability: ±0.5°C
Stabilisation Time: 25 Minutes
Well Diameter: 25 mm
Immersion Depth: 110 mm
Heating Time (Ambient to max.): 20 Minutes approx.
Cooling Time max. (to 100°C): 60 Minutes approx.
Switch Test facility/ Supply: Provided/ 5V DC (open)
Interchangeable Thermowells: Single hole to suit 1/4″ & 1/2″ Probes–Standard Other Sizes / Multihole – optional
Power Supply / Consumption: 230V AC / 50 Hz / 1200 W
Instrument Dimensions (L x D x H): 160 x 330 x 350 mm
Instrument Weight (approx.): 8.5 Kg
-Standard Delivery:
Basic Instrument
Test Leads
Mains Cable
Insertion Tubes (to suit 1/4“ & 1/2“ probes)
Tool for Insertion Tubes
Spare Fuses
Traceable Calibration Certificate
Instruction Manual
Carrying Case
-Optionals:
RS-232 Computer Interface
“Caltemp” Calibration Software
Additional Thermowells / Insertion Tubes (to choose from) :
+ Single hole standard sizes to suit :
1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 7/8” & 3, 4, 5, 6, 7, 8, 10, 12, 13, 15, 17, 19 & 21 mm probes
+ Multihole (Typical) : (1x6 + 1x8), (3x6), (1x10 + 1x4) mm
115V AC / 60 Hz Power Supply
Dual Voltage selection (115V AC & 230V AC)
Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory
