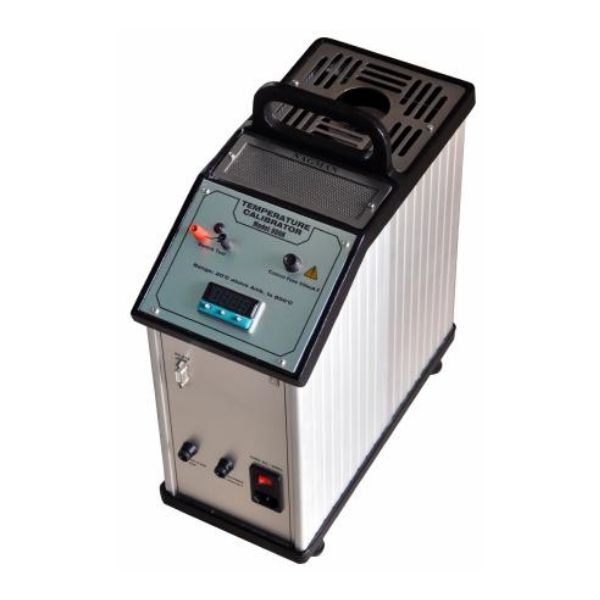

Nagman 800-H Medium Temperature Dry Block Calibrator (20°C~650°C, 0.1°C)

Range: 50°C to 800°C

Resolution: 0.1°C

Accuracy: Upto 600°C ±1.5°C; Above 600°C ±2.2°C

Stability: ±0.5°C

Stabilisation Time: 25 Minutes

Well Diameter: 30 mm

Immersion Depth: 150 mm

Heating Time (Ambient to max.): 30 Minutes approx.

Cooling Time max. (to 100°C): 75 Minutes approx.

Interchangeable Thermowells: Single hole to suit 1/4″ & 1/2″

Power Supply / Consumption: 230V AC / 50 Hz / 1200 W

Instrument Dimensions (L x D x H): 160 x 330 x 350 mm

Instrument Weight (approx.): 14 Kg

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Insertion Tubes (to suit 1/4“ & 1/2“ probes)

Tool for Insertion Tubes

Spare Fuses

Traceable Calibration Certificate

Instruction Manual

Carrying Case

-Optionals:

RS-232 Computer Interface

“Caltemp” Calibration Software

Additional Thermowells / Insertion Tubes (to choose from) :

 + Multihole (Typical) : (1x6 + 1x8), (3x6), (1x10 + 1x4) mm

Dual Voltage selection (115V AC & 230V AC)

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory
