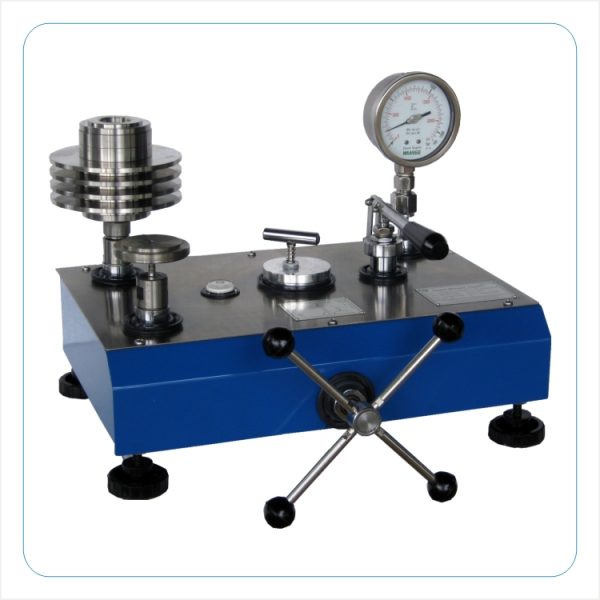

Nagman H6000 Hydraulic Dead Weight Tester (700 Bar, ±0.05% rdg)

Ranges: 35 / 70 / 100 / 160 / 350 / 600 / 700 Bar

Piston: Single / Dual

Standard Accuracy: ±0.05% of Reading

Traceability: International Standards

Weights: Mild Steel / Non-Magnetic Stainless Steel

Pressure generation: Thro’ Priming Pump & Screw Ram

Standard Corrections: Gravity : 9.80665 m/s2* / Temperature : 20°C / Air Density : 1.2 Kg/Cm2

Weight (approx.): Instrument : 19 Kg. ; Weight Sets : 8 to 33 Kg.

No. of Weights: 12 to 15

Instrument Dimensions: 530 x 325 x 230 mm (L x W x D)

Operating Fluid: Oil

DWTCal Software: Optional

PCU: Hardened Special Steel Piston & & Matching Cylinder

Remarks: Traceable to ISO/IEC 17025:2005 Accredited Calibration Lab

Standard Delivery:

• Calibrated M.S. / S.S Weight Sets - Refer Table ™ & š

• Full set of Adaptors consisting of 1/8”, 1/4", 3/8”, 1/2"

BSP (Set of NPT Adaptors available on request)

• Operating Fluid (500 ml)

• Spirit Level, Pointer Puller / Punch, Set of Spanners &

Screw Driver

• ‘O’ Ring & Seals

• Dust Cover, Wooden Carrying Case (for Weight Sets)

• Traceable Calibration Certificate

• Instruction Manual

Optionals:

• Right angled Adaptor / Two Gauge Adaptor

• Conversion Weight Sets to convert from one unit of

Pressure to another

• Incremental Weight Sets for smaller increments of Pressure

• DWTCal Calibration Software

• Motorized Version

• Calibration Certificate from NABL Accredited Laboratory

(as per ISO/IEC 17025:2005)
