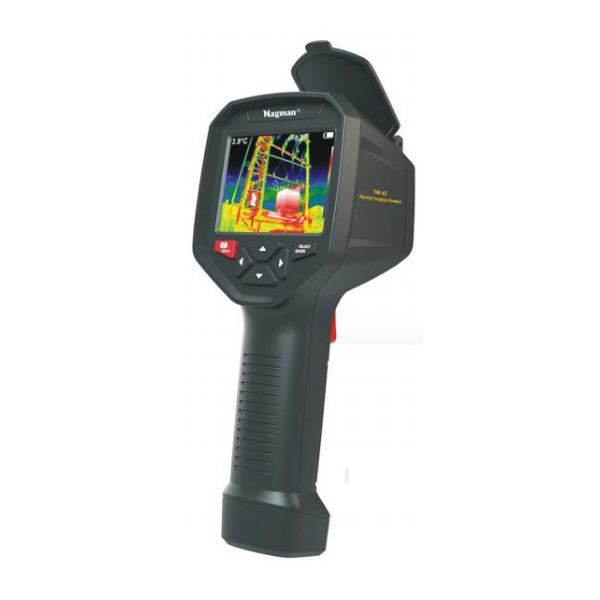

Nagman TIC 45 Thermal Imaging Camera (-20°C to 450°C (-4°F to 842°F))

Display screen: 3.5″ full angle TFT display screen

Infrared image resolution: 320 × 240

visible image resolution 300,000 pixel

Field angle/shortest focus length: 56° x 42°/ 0.15m

Display screen resolution: 640*480

Thermal sensitivity: 0.07°C

Temperature measurement range: -20°C to 450°C (-4°F to 842°F)

Measurement accuracy: ±2% digital / ±2°C

Emissivity: Adjustable from 0.01 to 1.0

Frame rate of thermal images: 9 Hz

Wavelength coverage: 8 - 14um

Focus mode: Fixed

Color palette: Rainbow, iron oxide red, cold color, black & white, white

& black

View option: The integration of thermal image with 25% step length

and visible image.

Storage medium: Built-in 3G (above 20,000 image stored)

File format JPG

USB Micro USB 2.0

Power supply: Built-in chargeable 26650 battery

Dimension (LxWxH): 97mm × 129mm × 256mm

Work temperature: 0°C to 45°C

Storage temperature: -20°C to 60°C

Relative humidity: < 85% RH
