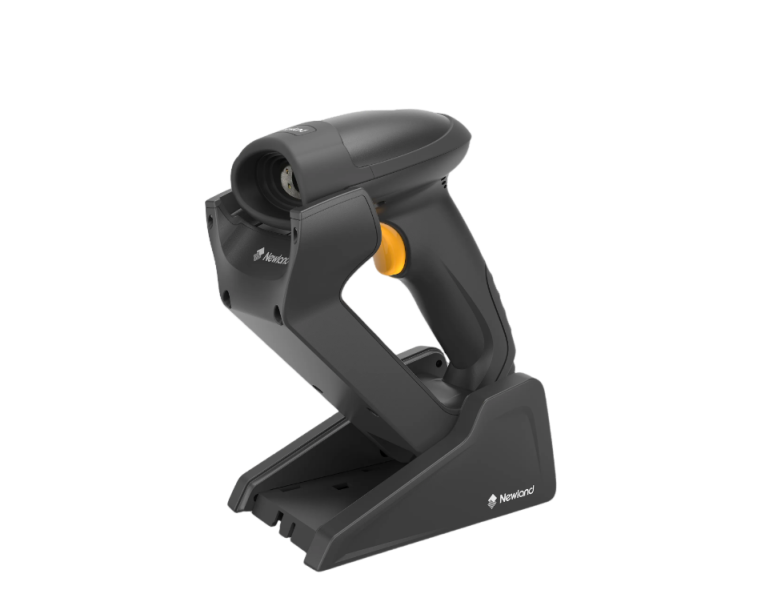

NEWLAND HR32-BT Cordless handheld scanner (50mm-495mm)

Image Sensor: 1280×800 (megapixel) CMOS

Illumination: White LED & Red LED (622nm-628nm)

Symbologies: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode. EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128.

Resolution: ≥3mil

Typical Depth of Field

50mm-495mm (13mil)

85mm-220mm (5mil)

70mm-215mm (6.7mil)

50mm-220mm (10mil)

20mm-325mm (15mil)

Scan Angle: Pitch: ±55°, Roll: 360°, Skew: ±55°

Min. Symbol Contrast: 25%

Field of View: Horizontal 39°, Vertical 24°

Aiming: Green LED (515nm-535nm)

Wireless

Communication Modes: Synchronous, asynchronous and batch mode

Radio Technology: Bluetooth 5.0

Communication Distance: 50m/164ft (direct line of sight in open air)

Battery: 2400 mAh lithium-ion battery

Expected Charge Time: 4 hours (with power adapter)

Expected Battery Life: 12 hours of continuous operation (scan once per 6 seconds)

Memory Capacity: ≥15000 pieces of Code 128 (20 byte of each Code 128)

Physical

Dimensions (L×W×H)

Scanner: 113.5(W)×73.3(D)×159.0(H)mm

Weight

Scanner: 217g

Operating Voltage: 5VDC±5%

Interfaces: RS-232, USB

Notification: Beep, LED

Environmental

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5%~95% (non-condensing)

ESD: ±8 KV (air discharge); ±4 KV (contact discharge)

Drop

Scanner: 1.5m/4.9ft Cradle: 1m/3.3ft

Sealing

Scanner: IP42

Battery Charge Temperature: 0°C to 45°C (32°F to 113°F)

Certifications

Certificates & Protection: Part15 Class B, CE EMC Class B. RoHS
