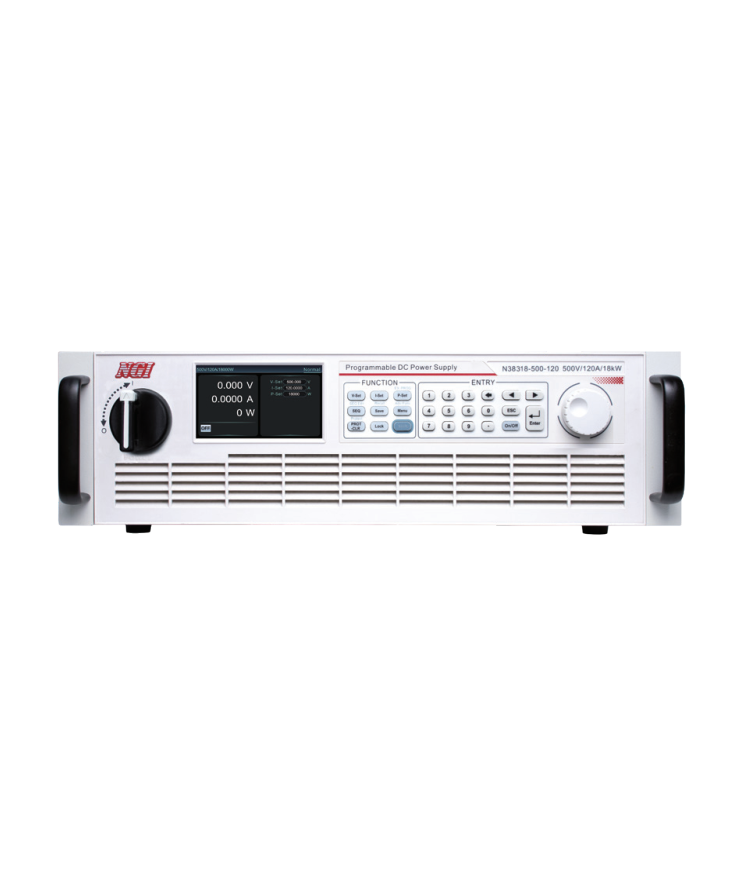

Voltage up to 2250V, current up to 5100A, power up to 180kW
Supporting master/slave parallel, extended power up to 1.8MW
Voltage accuracy 0.05%F.S., current accuracy 0.1%F.S.
Voltage and current sampling rate 500kHz, resolution 16 bits
Power factor 0.99, efficiency up to 93%
LAN port and RS232 interface as standard, GPIB, CAN, RS485 and USB as optional
CC&CV priority function
CC, CV and CP mode
Standard 19-inch 3U chassis
Editable rise and fall slew rate for voltage and current
Internal resistance simulation, SEQ function, voltage RAMP function
Multiple protections: OCP, OVP, LVP, OTP, OPP
Equipped with LCD screen, numeric buttons and knob to support local operation
Equipped with high-voltage isolation digital & analog, and monitoring interfaces
*For detailed specifications, please refer to the Datasheet.
