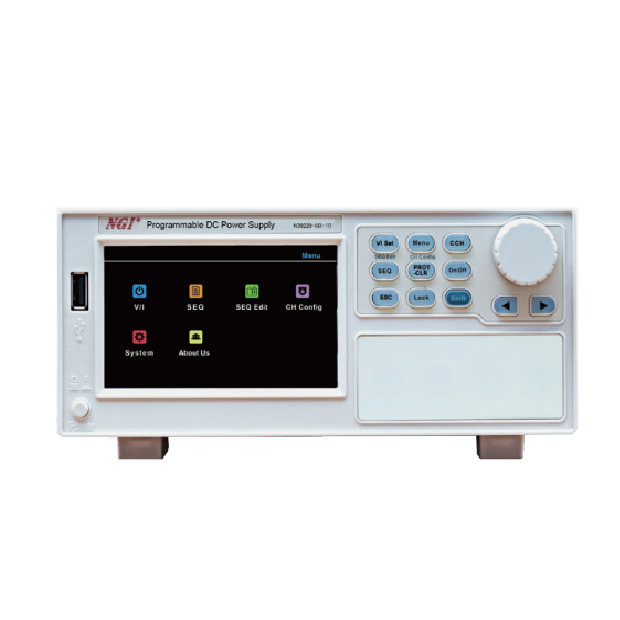

NGI N39240-60-20 High-accuracy Dual-channel Programmable DC Power Supply (60V/CH, 20A/CH, 400W/CH, 2CH)

Voltage: 60V/CH

Current: 20A/CH

Power: 400W/CH

Channels: 2CH

CV Mode

Range: 0~60V

Setting Resolution: 1mV

Setting Accuracy ( 23±5℃): 0.05%+0.1%F.S

Setting Temperature Coefficient ( 0-40℃): 50ppm /℃

Readback Resolution: 1mV

Readback Accuracy (23±5℃): 0.05%+0.1%F.S.

CC Mode

Range: 0~20A

Setting Resolution: 1mA

Setting Accuracy ( 23±5℃): 0.1%+0.1%F.S

Setting Temperature Coefficient (0-40℃): 50ppm /℃

Readback Resolution: 1mA

Readback Accuracy (23±5℃): 0.1%+0.1%F.S.

Readback Temperature Coefficient ( 0-40℃): 50ppm/℃

Output Noise & Ripple(20Hz-20MHz)

Voltage Ripple: 250mVp-p/ 20mVrms

Line Regulation: ≤0.015%(Voltage)

Load Regulation: ≤0.03%(Voltage)

Interface: RS232/LAN

AC Input: Single phase, 220V AC±10%, frequency 47Hz~63Hz

Temperature: Operating Environment:  Altitude <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Net Weight: Approx. 7kg

Dimension: 2U, 88.0(H)*214.0(W)*546.0(D)mm
