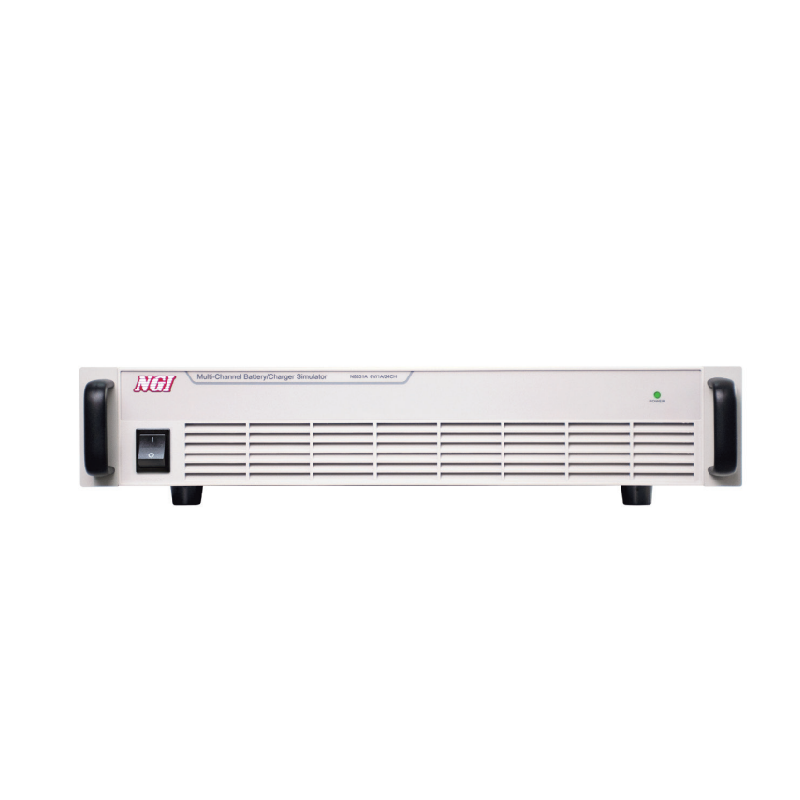

NGI N8331CP High Accuracy Multi-channel Battery Simulator (3A/CH, 5V/CH, 15W/CH, 16CH)

Current: 3A/CH

Voltage: 5V/CH

Power: 15W/CH

Channels: 16CH

CC Mode

Range: 0~3mA/ 0-3A

Setting Resolution: 0.1μA/ 0.1mA

Setting Accuracy（23±5℃): 3μA/ 3mA

Readback Resolution: 0.1μA/ 0.1mA

Readback Accuracy ( 23±5℃): 3μA/ 3mA

Temperature Coefficient（0~40℃): 50ppm/℃

Long-term Stability: 100ppm/1000h

CV Mode

Range: 0~5V

Setting Resolution: 0.1mV

Setting Accuracy（23±5℃): 0.6mV

Readback Resolution: 0.1mV

Readback Accuracy ( 23±5℃): 0.6mV

Temperature Coefficient（0~40℃): 30ppm/℃

Long-term Stability: 100ppm/1000h

Voltage Ripple Noise（20Hz-20MHz): ≤2mVrms

Isolation (Output to ground): 1500VDC

Isolation (Inter-channel): 500VDC

Communication Response Time: ≤10ms

Interface: LAN/RS485

AC Input: Single phase, 220V AC±10%, current <5A, frequency 47Hz~63Hz

Temperature: Operating temperature: 0℃~40℃, storage temperature: -20℃~60℃

Operating Environment: Altitude <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Net Weight: Approx. 20kg

Dimension: 2U, 88(H)*482(W)*568.5(D)mm
