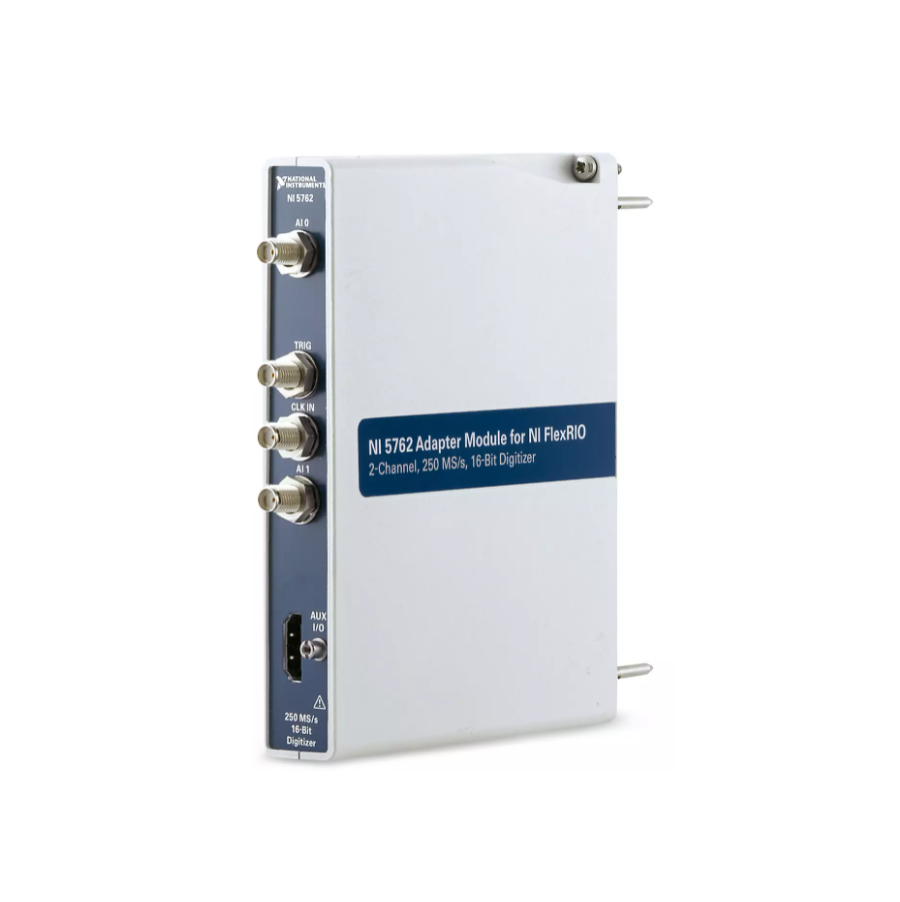

NI NI-5762 Digitizer Adapter Module for FlexRIO (2 Channels, 250 MS/s, AC, ±0.95V, Virtex-5 Kintex-7)
Manufacturer: NI Model: NI-5762 P/N: 781749-02 - Contact
Number of Voltage Input Channels: 2
Maximum Sample Rate: 250 MS/s
Analog Input Resolution: 16 bits
Analog Input Coupling: AC
Analog Input Bandwidth: 100 MHz
Analog Input Voltage Range: -0.95 V to 0.95 V
Compatible FPGA: Virtex-5 Kintex-7
Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.
Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.
Datasheet
