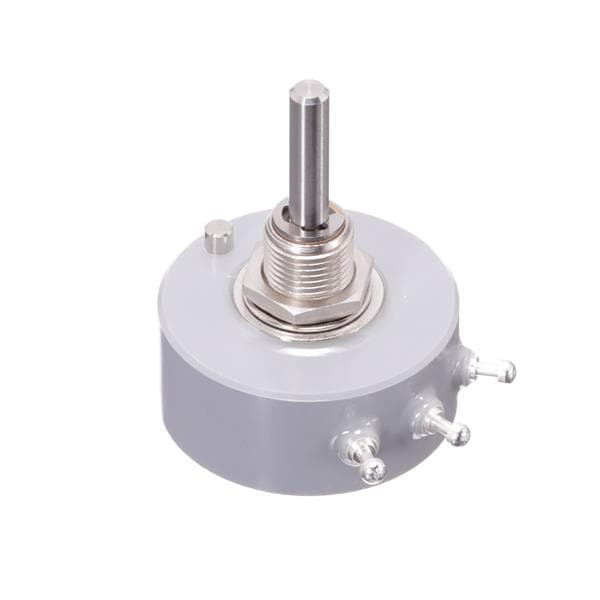

Nidec Components JP-30 500 High Resolution 300 degree electrical angle, 54.7mA @ 27.3V, 500 Ohm resistance, sensing single turn cermet, 30mm diameter, wirewrap leads

Life: 3000000 Cycle

Taper: Linear

Length: 14.5 mm

Diameter: 30 mm

Tolerance: 2 %

Resistance: 500 Ohms

Shaft Type: Smooth

Orientation: Vertical

Switch Type: No Switch

Unit Weight: 22 g

With Switch: No Switch

Bushing Size: 9 mm

Element Type: Cermet

Power Rating: 1.5 W

Shaft Length: 17 mm

Bushing Thread: M9 x 0.75

Mounting Style: Panel Mount

Shaft Diameter: 4 mm

Voltage Rating: 27.3 V

Number of Gangs: 1 Gang

Number of Turns: 1 Turn

Number of Detents: Without Detent

Termination Style: Solder Turret

Temperature Coefficient: 150 PPM / C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
